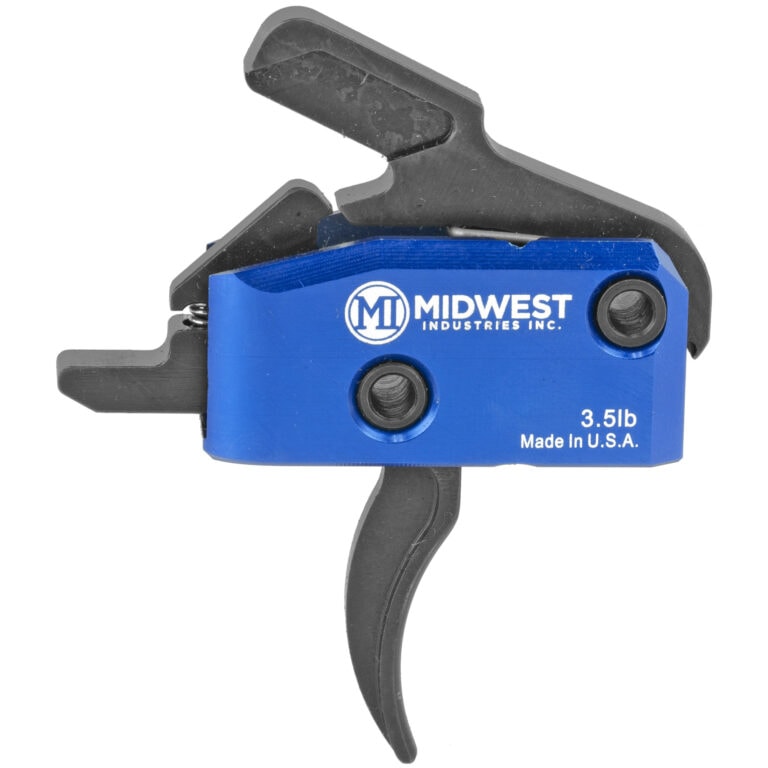

Midwest Industries Single Stage 3.5 Lb Trigger for AR-15/AR-10

3.5 Pound Drop-in Trigger with Anti-Walk Pins

This is a fully-featured drop-in replacement trigger for your AR-15 or AR-10 platform rifle.  This trigger has an ultra-crisp 3.5 lb pull, which is excellent for both accuracy and speed when firing.  The trigger reset is quick, with very low overtravel for follow-up shots.  And you have your choice of a traditional curved trigger, or a more modern flat-face design.

The casette-style housing is anodized aluminum, with hardened S7 tool steel hammer, disconnector, and trigger inside.  Proudly made in the USA, every piece comes together to make this trigger shine.  And it’s a true drop-in part, with included anti-walk pins and screws to ensure installation is simple and secure.

Features

• Lightened hammer and trigger pull (3.5-lb pull weight)
• More accurate shooting with less effort
• Ultra-smooth break with a crisp, clean release
• Fits small (standard) pin size (.154″)
• Quick reset and low overtravel for enhanced speed
• Drop safety feature
• Self-contained design makes it easy and quick to install with no fine-tuning needed
• Fits most .308 and .223 AR style platforms
• Anti-walk pins and screws included
• Made in the USA
• MI Limited Lifetime Guarantee

Specifications

• Pull Weight: 3.5 lb
• Interior Material: Hardened S7 Tool Steel
• Interior Finish: Nitride
• Housing Material: Aluminum
• Housing Finish: Hard Coat Anodized
• Weight: 2.4 oz

Installation

NOT FOLLOWING THESE INSTRUCTIONS WILL RESULT IN WARRANTY BEING VOID. MIDWEST INDUSTRIES IS NOT RESPONSIBLE FOR DAMAGE DONE TO FIREARM DURING INSTALLATION.

STEP 1
Make sure the weapon is clear and there is not a round in the chamber. REPEAT THIS STEP. Remove the upper receiver from the weapon system.

STEP 2
Loosen the grip screw on the inside of the grip and remove it. It may be a flathead, torx head, or hex head, depending on the manufacturer. Carefully remove the grip to expose the spring inside. There is a detent behind the spring. Both of these are small and easily lost. Remove the spring and detent, using your hand or a plastic bin to catch the detent as it falls. Save them for reinstallation (Step 7).

STEP 3
With a small brass punch or nonmetallic item (to avoid damage to the finish), press out the hammer pin and remove the hammer and hammer spring.

STEP 4
Next, press out the trigger pin. This may require pressing down on the disconnector. Remove the disconnector, disconnector spring, trigger, and trigger spring. Now remove the safety selector if it did not come out earlier. The pocket that everything was in should now be clear and empty.

STEP 5
Drop the Midwest Industries trigger in the pocket using the holes as a reference for direction. The hammer will face the magwell.

STEP 6
Install anti-walk pins with included wrench and screws.

STEP 7
Reinstall the safety selector and the grip assembly with the detent, detent spring, grip, and grip screw to their respective positions in that order.

STEP 8
There are two small setscrews located on the trigger system under the hammer springs. Lift or shift over each hammer spring and use a 5/64 Allen wrench to snug the setscrews to the floor of the receiver. Do not over-tighten, as this will change the poundage of the trigger.

DO NOT TIGHTEN OR LOOSEN THE MAIN SETSCREW (LOCATED IN THE CENTER). THIS HAS ANOTHER FUNCTION AND IS NOT TO BE CHANGED BY THE OPERATOR. SEEK A COMPETENT GUNSMITH IF CHANGES NEED TO BE MADE.

STEP 9
Perform functions check on the weapon to verify correct installation.
