Attach a Suppressor to Your Rifle With the Low Profile Void Muzzle Device

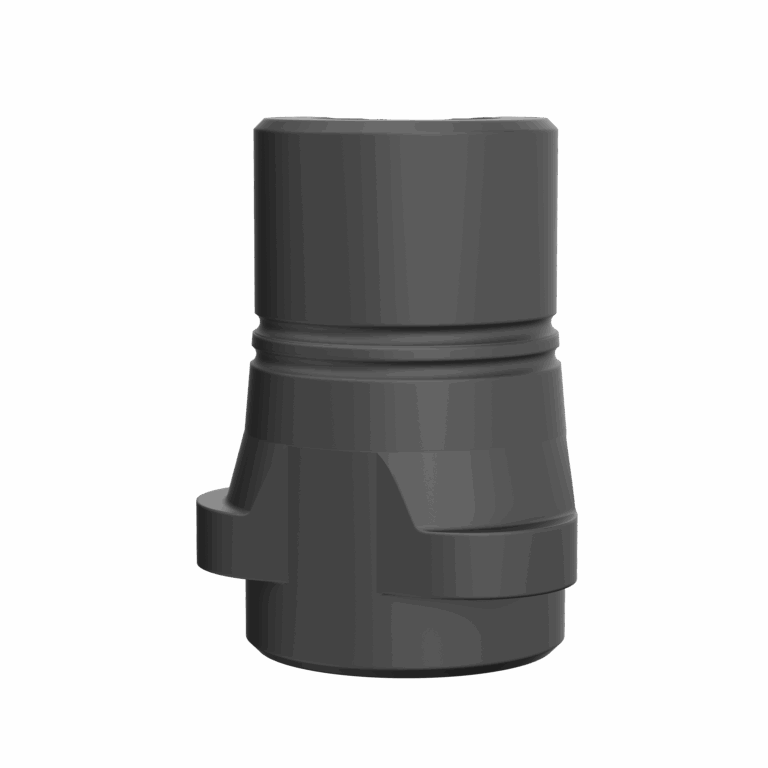

  The Breek Arms Void Mount is the ultra-light, minimalist suppressor interface for the Breek-LOK 3QD system. The Void Mount acts as the invisible foundation of your QD suppressor setup, out of the way when you don’t need it and there when you do. The design of the Void is ideal for users who are limited with what muzzle device types they can attach to their firearms due to state laws or who want as short and simple of a muzzle device as possible. Crafted from heat-treated steel and finished in black nitride, the Void is built to withstand hard use and high round counts without losing alignment or backing off. Its low-profile design keeps your muzzle device setup light while still offering full compatibility with Breek’s 3QD Suppressor Mount.

Features

• Low-profile design for minimal added weight and length
• It can be mounted on rifles in states with strict firearm laws as it is not a flash hider or muzzle brake
• Compatible with Breek-LOK 3QD suppressor mount
• .223/5.56 and .30 Caliber
• Machined from heat-treated steel with black nitride finish
• Snag-free, impact-resistant design for hard-use environments

Specifications

• Brand: Breek Arms
• Model: Void Mount for Breek-LOK 3QD
• MPN: BRK4336 and BRK4335
• Thread Options:
  • 1/2×28 – .223/5.56
  • 5/8×24 – .30 Cal
• Length: 1.63″
• Material: 4140 Hardened Steel
• Finish: Black Nitride
• Color: Black

How to Connect Muzzle Device to Breek-LOK 3QD Quick Detach Suppressor Mount HUB

1. Insert the Muzzle Device into the HUB: Align the muzzle device lugs with the HUB’s corresponding engagement points.
2. Engage with a Push and a Twist: Depress inward and rotate the HUB 60° clockwise. This motion guides the lugs into their locked position.
3. Secure the Tapered Seat: Complete an additional half rotation. This ensures the HUB’s internal taper seats firmly against the corresponding taper on the muzzle device, establishing a secure lock-up.
