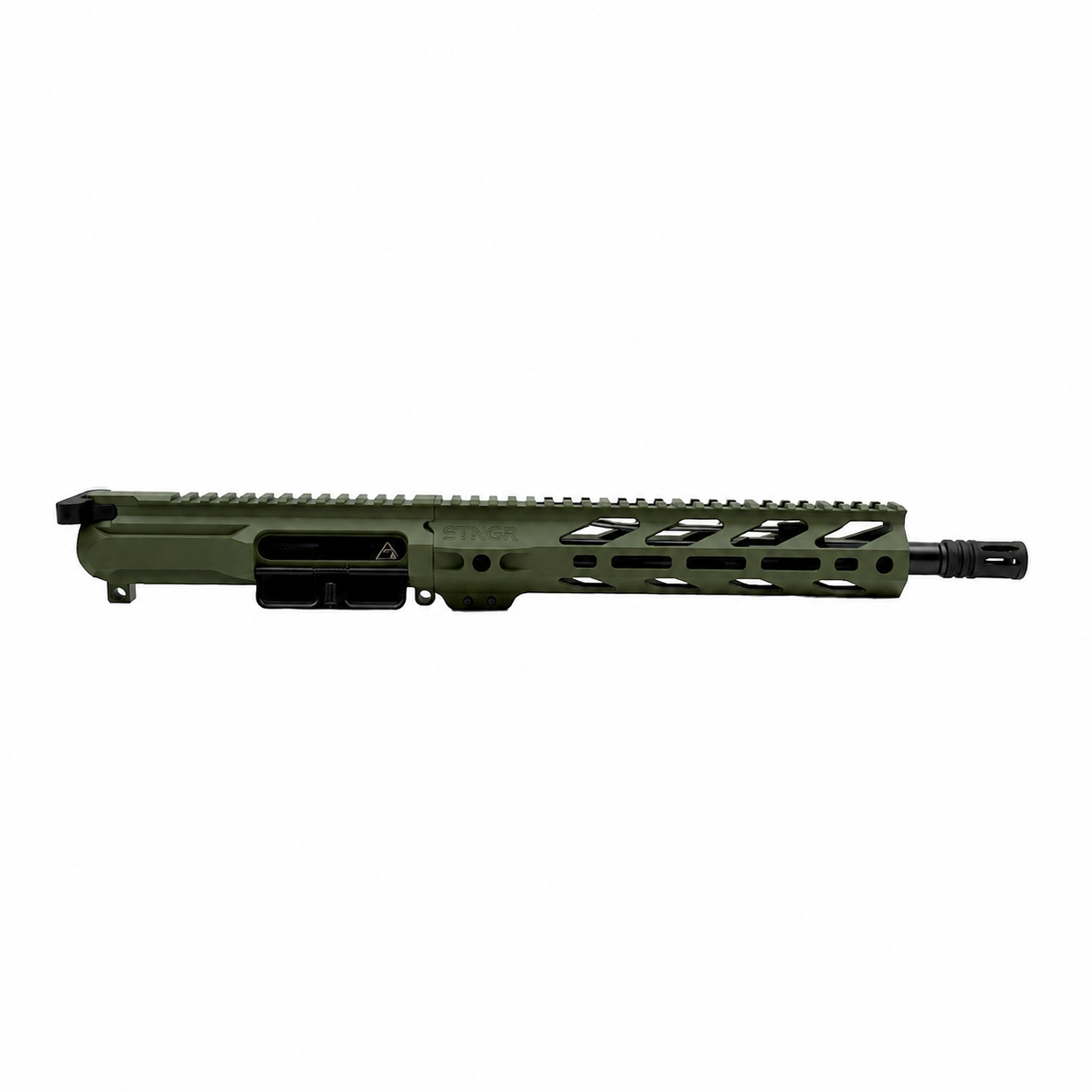

STNGR 11.5 Inch 5.56 Complete Upper – VYPR Rail with C158 BCG
Built to Order – Ships Within 3 Business Days
Features
- Fully assembled 11.5-inch 5.56 NATO AR-15 upper with bolt carrier group and charging handle
- 10-inch STNGR VYPR free-float handguard with M-LOK accessory slots
- VYPR anti-slide plate and anti-rotation tabs secure the handguard to the upper
- 11.5-inch Government-profile barrel with a 1:7 twist, black nitride finish, and carbine-length gas system
- Phosphate M16-profile bolt carrier group with a chrome-lined interior and Carpenter 158 bolt
- AT3 billet slick-side upper receiver eliminates the forward assist for a clean, streamlined profile
- Available in Black, Flat Dark Earth, and OD Green
The STNGR 11.5 Inch Complete Upper combines a compact 5.56 NATO barrel with a 10-inch VYPR handguard that provides useful mounting space without extending past the A2 flash hider. It arrives fully assembled with the gas system, C158 phosphate bolt carrier group, and standard charging handle already installed. The free-float VYPR rail uses a locking anti-slide plate and anti-rotation tabs to maintain a secure fit around the AT3 slick-side billet upper.
Specifications
- Brand: STNGR
- Model: 11.5 Inch 5.56 Complete Upper with 10 Inch VYPR Handguard
- Chamber: 5.56 NATO; also accepts .223 Remington
- Barrel Length: 11.5 inches
- Barrel Profile: Government
- Barrel Finish: Black nitride
- Twist Rate: 1:7
- Muzzle Thread: 1/2×28
- Gas System: Carbine length
- Gas Block Journal: .750 inch
- Handguard: STNGR VYPR, 10-inch free-float M-LOK
- Handguard Material: 6061-T6 aluminum
- Upper Receiver: AT3 billet slick-side upper
- Bolt Carrier Group: M16 profile, phosphate exterior with chrome-lined interior
- Bolt: Carpenter 158 steel, shot-peened and magnetic particle inspected
- Charging Handle: Standard GI AR-15 charging handle
- Muzzle Device: A2 flash hider
- Color and MPN:
- Black: STNGR-CU-P-VYPR-10-0
- Flat Dark Earth: STNGR-CU-P-VYPR-10-0-FDE
- OD Green: STNGR-CU-P-VYPR-10-0-ODG
What’s Included
- 1x Slick-Side Billet Upper Receiver
- 1x 11.5 Inch 5.56 NATO Government-Profile Barrel
- 1x STNGR 10 Inch VYPR M-LOK Free-Float Handguard
- 1x STNGR Phosphate and Chrome-Lined M16 Bolt Carrier Group with C158 Bolt
- 1x Standard GI AR-15 Charging Handle
- 1x .750 Low-Profile Steel Gas Block
- 1x Carbine-Length Gas Tube
- 1x A2 Flash Hider with Crush Washer
