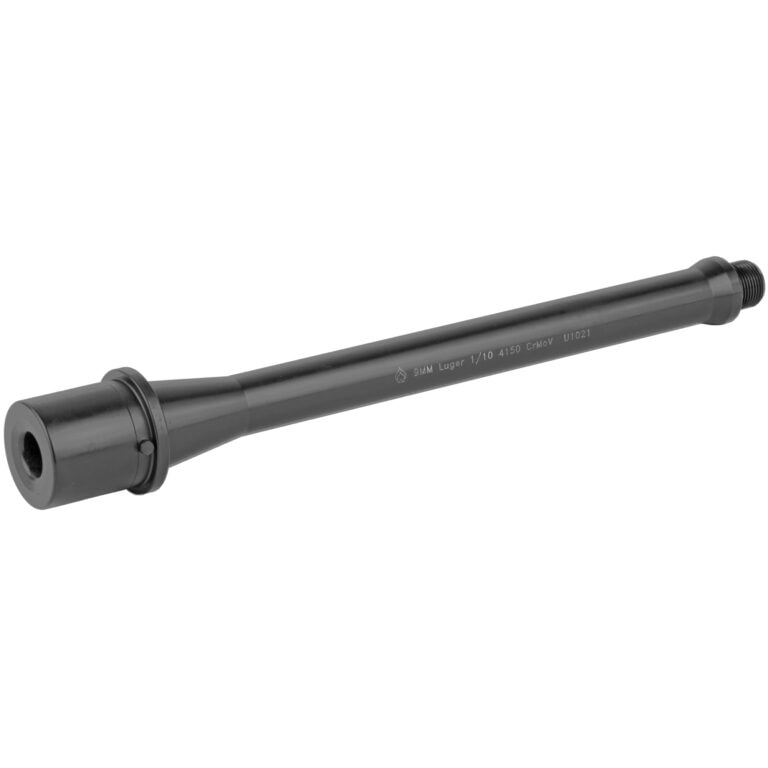

Lightweight 9mm AR Barrel for Pistol Caliber Carbines and Defense Pistols
This 9mm barrel features a lightweight pencil profile and is only 8.3 inches long, cutting down unnecessary weight for better handling. This barrel is compatible with a large variety of 9mm blowback builds, including those with Glock or Colt pattern magazines and bolts. The 1/2×28 threads also offer greater compatibility with the latest 9mm suppressors and muzzle devices.
This barrel features the updated feedramp for superior reliability.
- Designed to work with both Colt/RR and Glock style AR builds.
- Pencil profile barrel reduces weight dramatically for better handling
- Compatible with standard mil-spec uppers. There are also numerous dedicated 9mm upper options that work.
- Requires the use of a unique magwell conversion (Colt/Rock River style) with UZI mags or a dedicated 9mm lower with Glock mags.
- 9mm on an AR15 platform operates by blowback and does not need a gas block or gas tube.
- Integrated feed ramp and barrel extension.
Since the “barrel extension” is an integral part of the barrel, the length stated is the true overall length. For example, an 11” 9mm barrel has the same outer dimensions/length as a 10.5” 5.56 barrel.
Before installing a muzzle device, ensure a 9mm round will drop freely through the muzzle device bore.
Additional Info
- Length: 8.3″
- Material: 4150 Chrome Moly Vanadium
- Profile: Pencil
- Finish: QPQ Corrosion Resistant (Nitride)
- Gas System Length: Blowback
- Gas Block Journal: Blowback Gas System – No Gas Block
- Twist Rate: 1:10 inches
- Muzzle: 1/2×28 Threads
- Weight: 9.5oz
- Other Info: No
About Ballistic Advantage
Ballistic Advantage manufactures quality AR barrels that exceed the most rigorous customer demands. These AR-15 barrels surpass the competition in accuracy, precision, and beautifully contoured aesthetics.
Their engaged team of engineers and machinists continually innovate and improve design to enhance performance. From the popular 16″ AR barrels to all other lengths and styles, Ballistic Advantage barrels enhance any quality AR-15 build.
From the moment you unwrap a Ballistic Advantage barrel, as you configure it with your receivers and handguards, and as you fire it on the range or in the field, you will experience the unique elegance and uncompromising quality crafted into every barrel.
Sub-MOA Guarantee
Buying a Ballistic Advantage barrel means guaranteed accuracy. All Ballistic Advantage barrels are guaranteed to give Sub-Minute-of-Angle (MOA) accuracy with match grade ammunition.
Specifications:
| Caliber | 9x19mm Parabellum |
| Barrel Length | 8.3 inches |
| Barrel Twist Rate | 1:10 inches |
| Barrel Material | 4150 CMV |
| Muzzle Threads | 1/2/2028 |
| Barrel Finish | Black Nitride |
| Gas Block Size | Blowback Gas System – No Gas Block |
| Fit | AR-15 |
| Barrel Profile | Pencil |
| Barrel Gas System | Blowback |
| Barrel Extension | M4 |
| Weight | 9.5 ounces |
