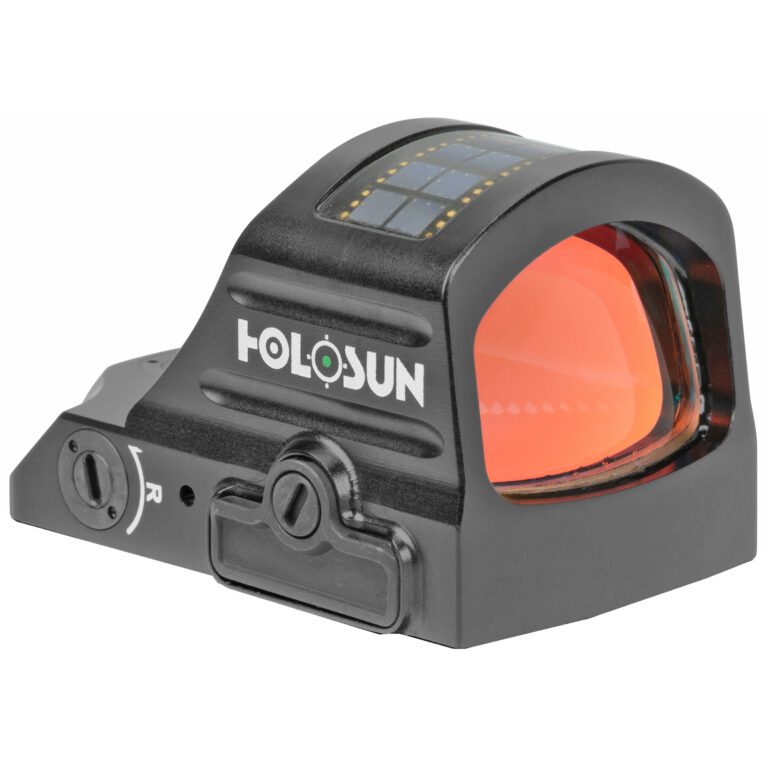

Holosun 507C X2 Pistol Red Dot Sight
The Holosun 507C X2 brings massive capability to your optics cut pistol, with long and reliable battery life and a circle dot reticle. This red dot sight uses the Trijicon RMR mounting standard, which is commonly available on optics-ready pistols, such the Glock 19 MOS. The 507C X2 features excellent reliability, with 50,000 hour battery life, Shake Awake, and Solar Failsafe.
The Holosun circle dot reticle also makes getting on target fast and easy. The 32 MOA circle helps you get on target after drawing from your holster, so you can make fast, accurate shots. With the 1 MOA click adjustment, you can effectively zero your pistol precisely for its effective range. Plus, it’s tough enough to perform reliably for thousands of rounds, rated for up to 5000 G’s from recoil.
Red Dot or Green Dot?
Holosun makes this sight with a red emitter, or a slightly more expensive green emitter. As for which one is right for you, it depends. Both models have the same features and incredible battery life, though some shooters prefer the green dot because it catches their eye faster than the red reticle.
One thing to consider is your shooting environment. If you have a lot of green in your background, the red version will provide you with better contrast. In arid environments with reddish soil, the green reticle will stand out more. It depends on your eye and your situation; but in our experience, it’s down to personal preference: you can’t go wrong.
Features
- Side Loading Battery – No need to re-zero your sight between battery changes
- 50,000 + Hour Battery Life at Lowest Settings
- Shake Awake to Extend Battery Life Even Further
- Solar Failsafe – As long as you have sunlight, the sight will run!
- Multi Reticle System – Choose from three different reticle modes
- 2 MOA Dot with 32 MOA Circle
- 2 MOA Dot Only
- 32 MOA Circle Only
- 10 Daylight Settings and 2 Night Vision Compatible Settings
Includes
- CR1632 Battery
- T10 Wrench
- User Manual
- Lens Cloth
Specifications
- Magnification: 1x
- Window Size: 0.63″ x 0.91″
- Parallax Free: Yes
- Eye Relief: Unlimited
- Light Wavelength
- Red: 650nm
- Green: 540nm
- Battery Type: CR1632
- Battery Life: 50000 Hours
- Adjustment Per Click: 1 MOA
- Windage/Elevation Range: ±50 MOA
- Waterproof Rating: IP67
- Vibration Rating: 5000G
- Storage Temperature: -40 to 70 Degrees Celsius
- Working Temperature: -30 to 60 Degrees Celsius
- Housing Material: 7075-T6 Aluminum
- Dimensions
- Height: 1.15″
- Width: 1.15″
- Length: 1.78″
RMR Optic Firearm Compatibility
This optics compatibility chart is continuously updated based on the latest available information, but firearm and optics platforms evolve rapidly. If you notice your firearm isn’t listed below, please reach out to us directly: Contact Us.
RMR Footprint Compatibility Notes:
– Direct Mount: Mounts Directly to Slide
– Mounting Plate Required: Purchased Separately
– Mounts with Factory Adapter Plate: Included With New Firearm Purchase
AREX
Mounts with Factory Adapter Plate:
AREX Delta Gen.2 Optics Ready, AREX Zero 1 Tactical
BERETTA
Mounting Plate Required:
APX A1 Full Size RDO, APX A1 Tactical, M9A4, 92X RDO, 92X Performance RDO, 92XI Optics Ready Models, 90 Series RDO Models
CANIK
Mounts with Factory Adapter Plate:
TP9SFX, SFX Rival, SFX Rival-S
CZ / DAN WESSON
Mounting Plate Required:
CZ P-10 C Optics Ready, CZ P-10 F Optics Ready, CZ P-10 S Optics Ready, CZ Shadow 2 Optics Ready, Dan Wesson DWX Optics Ready
FN
Mounts with Factory Adapter Plate:
FN 509 MRD, FN 509 Compact MRD, FN 509 Midsize MRD, FN 509 Fullsize MRD, FN 509 Tactical, FN 509 Compact Tactical, FN 509 Compact MRD Comp, FN 502 MRD, FN 502 Tactical, FN 510 MRD, FN 510 Tactical, FN 545 MRD, FN 545 Tactical, FN Five-seveN MRD, FNX-45 Tactical, FN 309 MRD
GLOCK MOS
Mounts with Factory Adapter Plate:
G17 Gen5 MOS, G19 Gen5 MOS, G19X MOS, G20 Gen5 MOS, G21 Gen5 MOS, G22 Gen5 MOS, G23 Gen5 MOS, G26 Gen5 MOS, G29 Gen5 MOS, G30 Gen5 MOS, G34 Gen5 MOS, G40 Gen4 MOS, G41 Gen4 MOS, G45 MOS, G47 MOS, G49 MOS, G17L Gen5 MOS
Gen 4 Legacy / Limited-Availability MOS Models:
G17 Gen4 MOS, G19 Gen4 MOS, G34 Gen4 MOS, G35 Gen4 MOS
HECKLER & KOCH / HK
Mounting Plate Required:
VP9 Optics Ready, VP9A1 F, VP9A1 K, VP9A1 L, VP9A1 X, VP9L OR, VP9 Match
IWI
Mounts with Factory Adapter Plate:
IWI Masada, IWI Masada Tactical
KIMBER
Mounts with Factory Adapter Plate:
Kimber 2K11 OR, 2K11 Target OR, 2K11 Stainless Target OR, 2K11 Pro OR
PSA
Direct Mount:
PSA Dagger Compact RMR Cut, PSA Dagger Full Size-S RMR Cut, PSA Dagger Full Size-SX RMR Cut, PSA Sabre Dagger RMR Cut
RUGER
Direct Mount:
Ruger RXM
SHADOW SYSTEMS
Direct Mount:
MR920, MR920L, XR920, DR920, DR920P, DR920L, Foundation Series MR920, Foundation Series XR920, Foundation Series DR920
SIG SAUER
Direct Mount / Factory Optic-Ready Cut:
P320 AXG Legion, P320 AXG Carry, P320 AXG Classic, P320 XFIVE Legion, P320 DH3, other P320 slides specifically marked by SIG as RMR-compatible
Mounting Plate Required:
P226-XFIVE, P226-XFIVE Legion, P226X Legion, P229 Optics Ready Legion variants when using the correct RMR plate
SMITH & WESSON
Mounts with Factory Adapter Plate:
M&P9 M2.0 Optics Ready Full Size, M&P9 M2.0 Optics Ready Compact, M&P9 M2.0 Metal Optics Ready, M&P9 M2.0 Metal Carry Comp, M&P9 M2.0 Competitor, M&P9 M2.0 Carry Comp Optics Ready, M&P10mm M2.0 Optics Ready, M&P Performance Center C.O.R.E. Models, M&P M2.0 Optics Ready slide kits cut for Trijicon RMR
SPRINGFIELD ARMORY
Direct Mount:
Echelon, Echelon Comp, Echelon 4.0C, other Echelon VIS models
Mounting Plate Required:
XD-M Elite OSP, XD-M OSP, XD OSP, 1911 DS Prodigy AOS, 1911 AOS models
STACCATO
Mounting Plate Required:
Staccato C, Staccato C2, Staccato CS, Staccato P, Staccato XC, Staccato XL, and other Dawson Precision Optic / DPO-equipped Staccato pistols
TAURUS
Mounts with Factory Adapter Plate:
G3 Tactical T.O.R.O., G3 T.O.R.O., G3C T.O.R.O., TX22 Competition, TX22 Competition SCR
WALTHER
Mounting Plate Required:
PDP Full Size, PDP Compact, PDP F-Series, PDP Pro SD, PDP Match, PDP Steel Frame, PDP Pro-X, PDP Pro-E, Q4 SF Optics Ready, Q5 Match Optics Ready, Q5 Match Steel Frame Optics Ready
