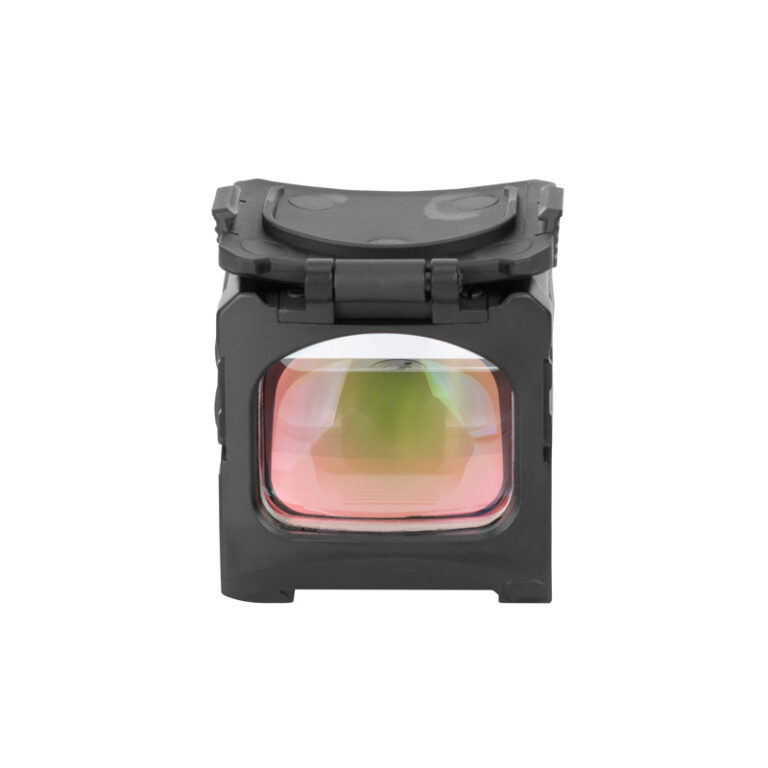

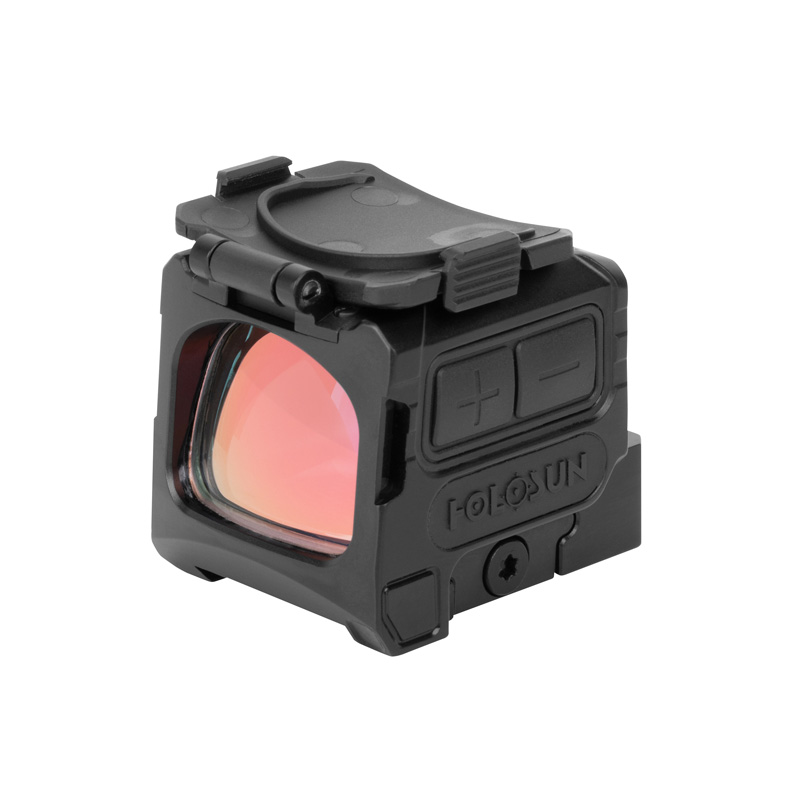

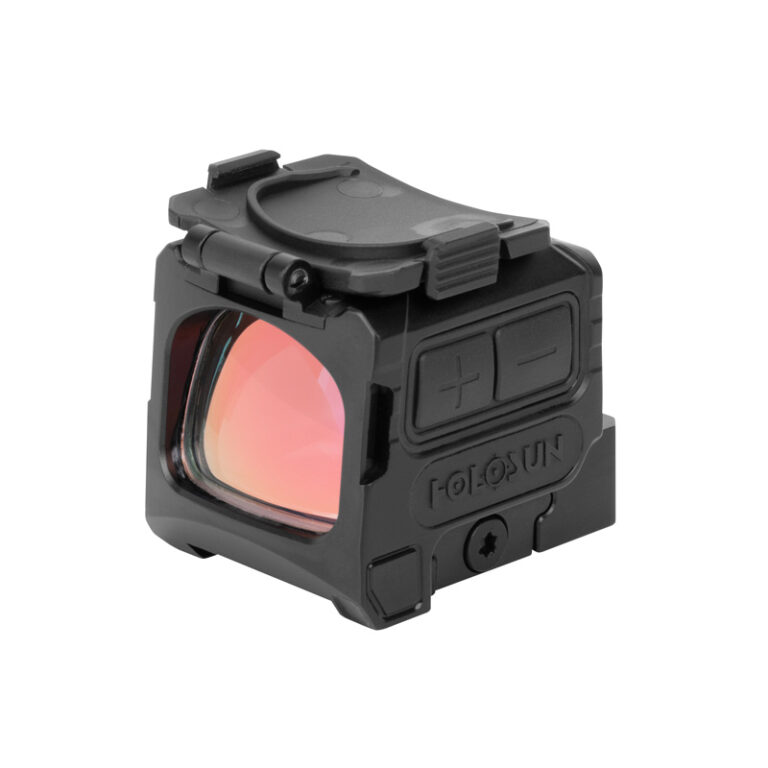

Holosun DPS-TH Fuses Red Dot Precision with Thermal Imaging
Features
- Fusion sight combining red dot and thermal imaging
- 640×480 thermal resolution display at 50 FPS
- LED Multi-Reticle System (MRS) with digital reticle option
- Multiple thermal modes: White Hot, Black Hot, Highlight, Edge Detection
- Rechargeable 18350 battery with magnetic USB charging
- 7075-T6 aluminum housing construction
- IP67 waterproof rating
- Operating temperature range: -20°C to 50°C
- 8 daylight and 4 night vision brightness settings
- Shake Awake technology
The DPS-TH addresses the limitation of traditional red dots in low-light and zero-light conditions by integrating thermal imaging capability directly into the optic. This fusion technology provides both precision red dot aiming and thermal target identification in one compact unit. The 640×480 thermal overlay projects onto the display at 50 FPS, offering multiple imaging modes for different tactical situations while maintaining the familiar operation of a standard red dot sight.
Specifications
- Brand: Holosun Technologies
- Model: DPS-TH
- Type: Digital Thermal Pistol Sight
- Thermal Resolution: 640×480 (256×192 sensor)
- Display Rate: 50 FPS
- Spectral Range: 8-14μm
- Reticle System: LED MRS (Multi-Reticle System)
- Reticle Options: 2 MOA dot, 32 MOA circle, 2 MOA dot + 32 MOA circle
- Magnification: 1x
- Battery: Rechargeable 18350
- Thermal Battery Life: Up to 10 hours
- Red Dot Battery Life: 50,000+ hours
- Brightness Settings: 8 daylight, 4 night vision
- Adjustment Value: 0.5 MOA per click
- Housing Material: 7075-T6 Aluminum
- Finish: Black anodized
- Waterproof Rating: IP67
- Operating Temperature: -20°C to 50°C
- Thermal Modes: White Hot, Black Hot, Highlight, Edge Detection, Fusion
What’s Included?
- 1x Holosun DPS-TH Digital Thermal Pistol Sight
- 1x Magnetic USB Charging Cable
- 1x User Manual
- 1x Mounting Hardware
