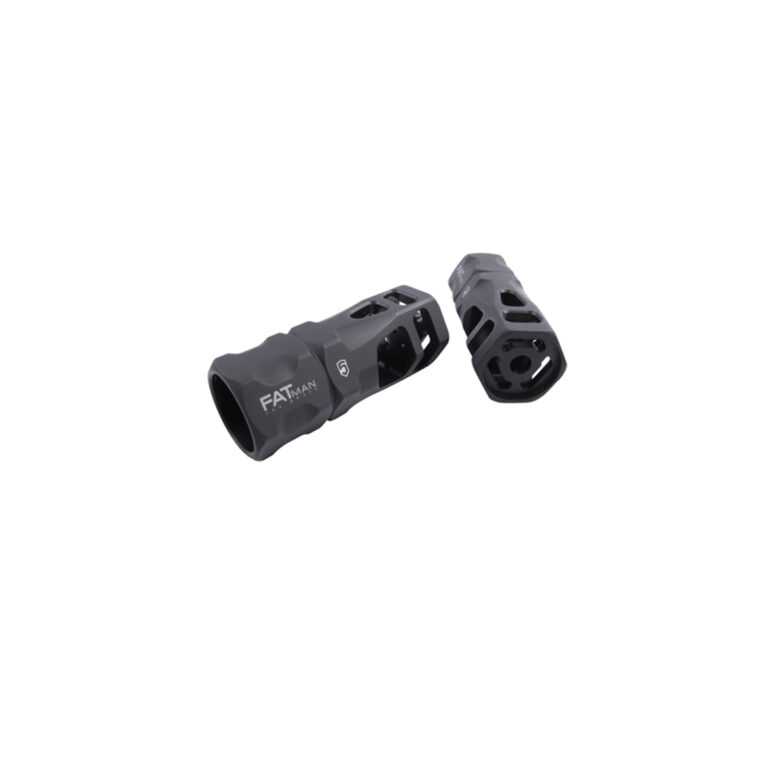

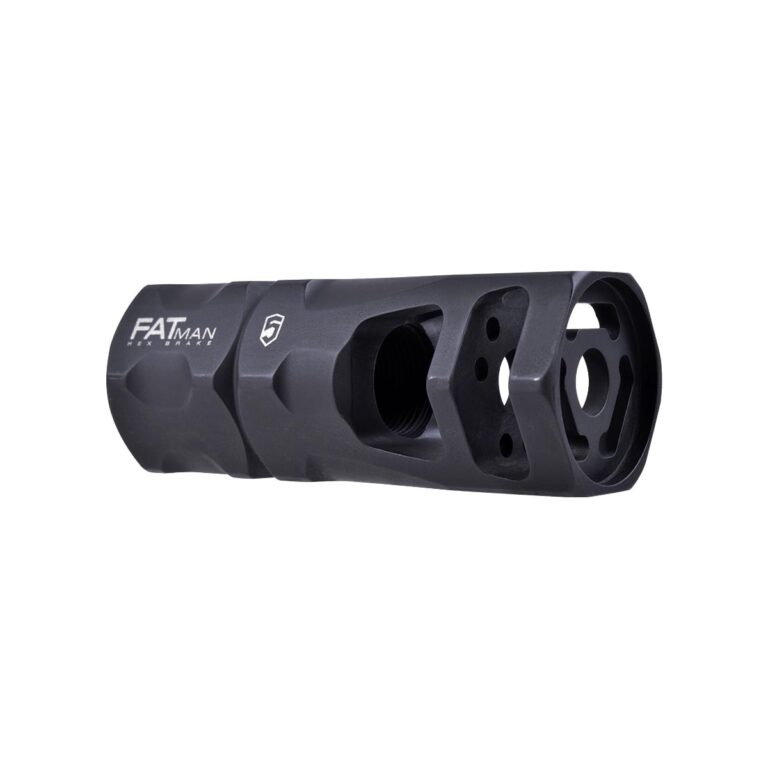

Phase 5 Weapon Systems FATman Hex Brake – 1/2×28 for 9mm

Be the first to review

SKU: FATman-1/2-28 9mm

Out of Stock
Orders will Ship within 1 Business Day
Backed by the Phase 5 Warranty!
Only 1 remaining. Order now!
TOP ADD-ON'S

Phase 5 Weapon Systems AR-15 Extended Bolt Release V3 - Black

$54.99

Phase 5 FATman Hex Brake: Dual-Chamber Comp for 9mm Competition Builds

Features

  • Two large ventilated baffle sections reduce recoil
  • Dual top ports machined at 20-degree forward angle
  • Maintains flat shooting profile shot after shot
  • First chamber wall sits close to barrel crown for accuracy
  • Iconic Phase 5 hex design
  • Mil-Spec black Parkerized finish
  • 1/2×28 TPI threading
  • Compatible with 9mm, 7.62×39, and 6.8mm
  • Crush washer included

The Phase 5 FATman Hex Brake solves the muzzle rise problem for competition shooters by using two oversized baffle chambers and 20-degree forward-angled top ports that keep your sights flat through rapid strings. This brake works well for 9mm PCC competition where split times matter, precision builds requiring maximum recoil reduction, and anyone wanting aggressive compensation without the noise of side ports. The first chamber wall sits tight to the barrel crown to preserve accuracy, while the dual baffle design creates serious gas redirection – bringing competition-level performance to your build with Phase 5’s signature hex styling.

Note: Brake adds approximately 1.35″ from barrel crown with crush washer installed. If pinning and welding to a 14.5″ barrel, verify total length from bolt face to brake end exceeds 16.000″ to remain non-NFA.

Specifications

  • Brand: Phase 5 Weapon Systems
  • Model: FATman Hex Brake
  • Caliber: 9mm/7.62×39/6.8mm
  • Thread Pitch: 1/2×28 TPI
  • Length: 3.0″
  • Width: 1.26″
  • Weight: 6.0 oz
  • Top Port Angle: 20 Degrees Forward
  • Baffle Chambers: 2 Large Ventilated Sections
  • Finish: Mil-Spec Black Parkerized
  • Added Length (with crush washer): Approximately 1.35″ from barrel crown

What’s Included

  • 1x FATman Hex Brake
  • 1x Crush washer

The AT3 Tactical store has a 90 day no-hassle return policy for products in good condition. You can view the full details of our return policy here.

If you encounter an issue or defect with a product after 90 days of your purchase, you can refer to the manufacturer for a warranty claim. Their policies are below.

Phase 5 Warranty

All parts should be installed by a licensed, experienced GUNSMITH. You must consider the importance of every aspect involved with a proper installation. Improperly installed components can cause malfunctions, weapon failures, serious injury, or even death. PHASE 5™ WILL NOT WARRANTY COMPONENTS DAMAGED BY CUSTOMERS DURING INSTALLATION. All Phase 5 WSI assemblies and components have a lifetime warranty against any manufacturing defects.

Warranty Issues: email tech@phase5wsi.com with the details of the issue you are experiencing. Please include your name and contact information.

Return & Exchange Policy

You must contact us within 30 days from the date of purchase for any returns or exchanges. Email Returns@phase5wsi.com to request a Return Merchandise Authorization Form. Please include your name, contact information, and order number. All returns and exchanges must be in original condition. Any product returned DAMAGED/USED is subject to a 20% refurbishing fee. We do not accept returns or exchanges for apparel. The customer is liable for all shipping charges on non-defective items.

Disclaimer: Manufacturer’s warranty is subject to change without prior notice.
