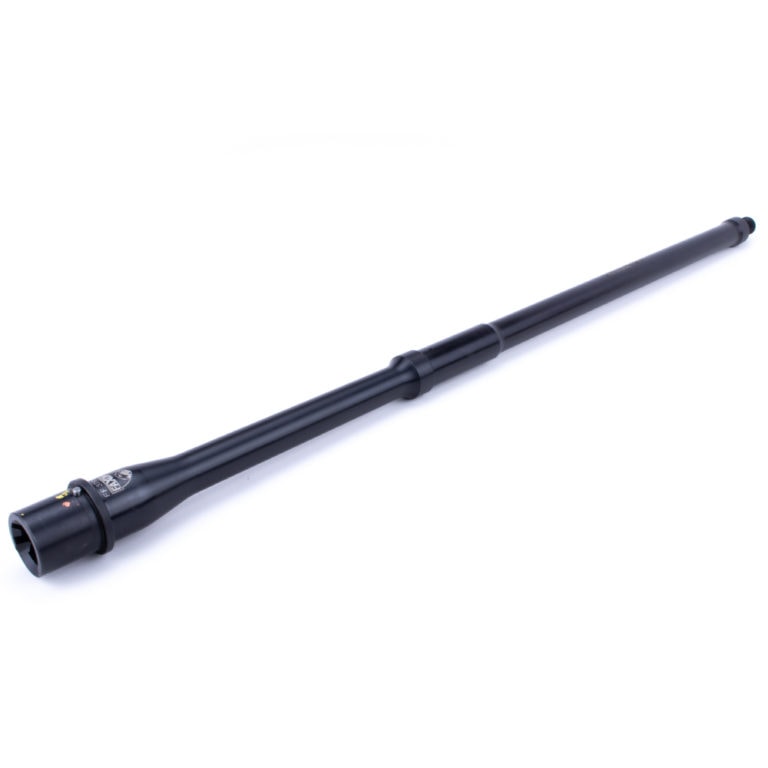

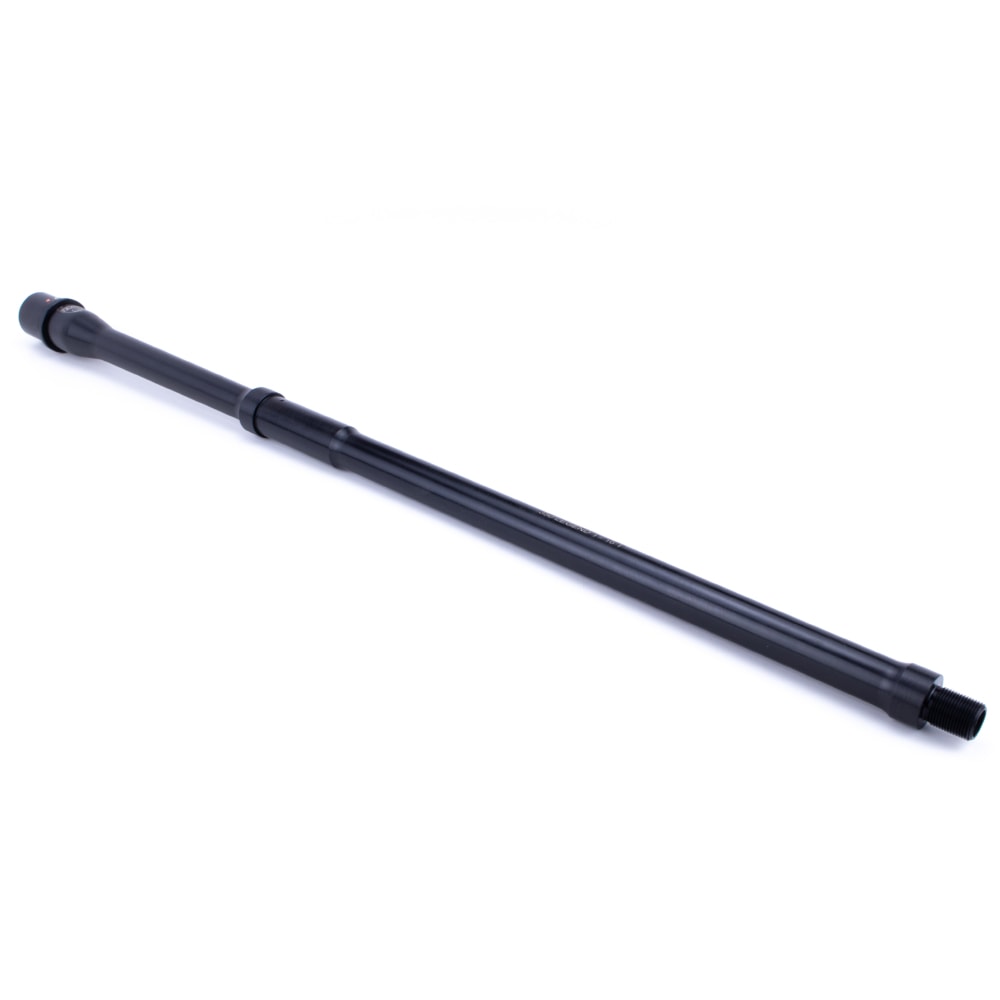

Faxon 20 Inch 350 Legend Barrel

Squeeze out extra velocity on your next .350 Legend hunt, with this 20 inch long barrel from Faxon Firearms. Stress relieved and air gauge tested like all Faxon Barrels, this workhorse barrel features 4150 CMV construction and a black nitride finish for corrosion resistance. And, if you want to save money for ammo, this barrel works with standard 5.56 bolt carrier groups.

What Muzzle Device Do I Need?

In the most basic terms, 350 Legend is a 9mm projectile, with a lot more powder behind it.  On this barrel in particular, you’ll see 1/2×28 threads, which is common for most AR-15 muzzle devices. However, most of these are bored for the standard .22 caliber bullet in .223/5.56. Firing .350 Legend through such muzzle devices can lead to catastrophic failure and injury.

For your safety, make sure that your muzzle device of choice is bored for 9mm projectiles.


  • Barrel Material: 4150 CMV
  • Barrel Type: Button Rifled
  • Barrel Caliber: 350 Legend SAAMI
  • Barrel Twist: 1:16
  • Barrel Length: 20″
  • Barrel Profile:  Gunner
  • Barrel Gas System: Carbine
  • Inside Finish: Nitride
  • Outside Finish: Nitride
  • Muzzle Thread: 1/2×28
  • Gas Block Diameter: .750″
  • Gas Block Journal Length: 1.9″
  • Barrel Extension: Big Bore
  • Weight:  1.61  lbs
  • Magnetic Particle Inspected
  • 11-degree Target Crown


Caliber.350 Legend
Barrel Length20 inches
Barrel Twist Rate1:16 inches
Barrel Material4150 CMV
Muzzle Threads1/2/2028
Barrel FinishBlack Nitride
Gas Block Size.750″ Gas Block
Barrel ProfileGunner
Barrel Gas SystemCarbine
Gas Block Journal Length1.9 inches
Barrel ExtensionM4
Weight25.76 ounces
