Extra Buffer Weight for Extra Reliability

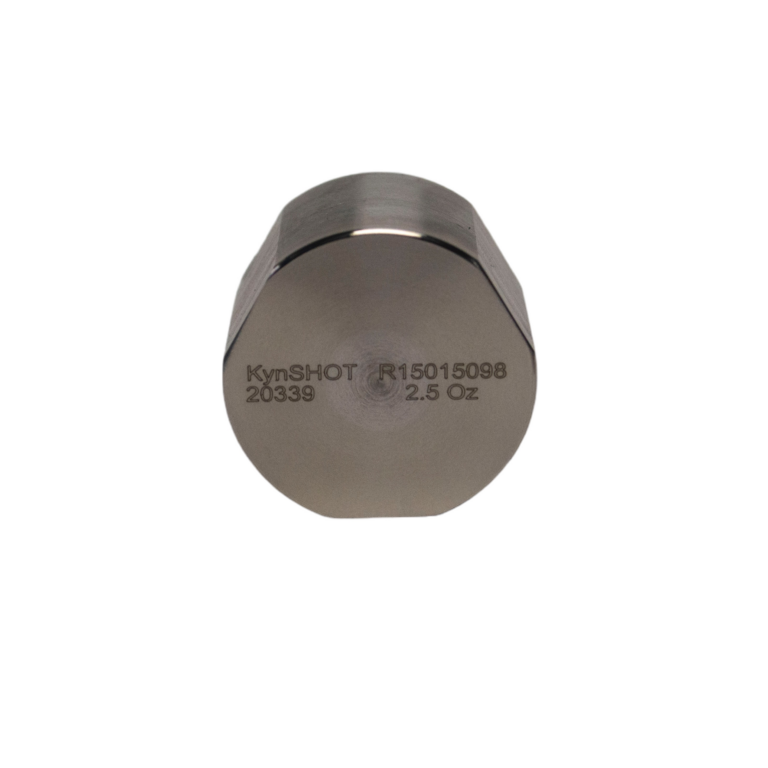

The KynSHOT Spacer Weight was designed in cooperation with Blitzkrieg Components and can be used with their PCC hydraulic buffers,
and their AR hydraulic buffers to add mass in front of the buffer. The Spacer Weight also adds .75″ in length to the buffer system, and adds
2.5 ounces of weight, which is designed for a close fit buffer tube while preventing tilting of the buffer during cycling.
If you want to use this weight and have your bolt cycle the full distance and stop behind the bolt catch, you will need to use an AR-10/A5
length buffer tube since they are .75″ longer on the inside. If you use this weight with their PCC buffers to create a short stroke system that
stops forward of the bolt catch you will need to use a typical AR-15 buffer tube . Additional mass is very important in any PCC short stroke
set up since the bolt doesn’t have as much time to slow down.
The most optimal set up for most 8-16″ barreled guns is to run this PCC Buffer weight in front of an RB5015HD buffer with a .308 carbine
buffer spring in an AR10/A5 buffer tube for full bolt stroke. If your bolt has a weight pinned into the rear of it, we recommend leaving that in
place to retain full mass of your bolt.
100% USA Made
Benefits
• Easy installation
• Adds additional mass to further delay initial bolt movement
• Slows bolts velocity
• Helps keep the buffer aligned in the buffer tube
• The spacers additional length can be used as a short stroke
• Corrosion resistant
Specifications
• Weight: 2.5 Ounces
• Overall length: .75″
• Spacer diameter: .995″
• Manufactured with 17-4 stainless steel
• Designed for PCC’s and AR platforms
