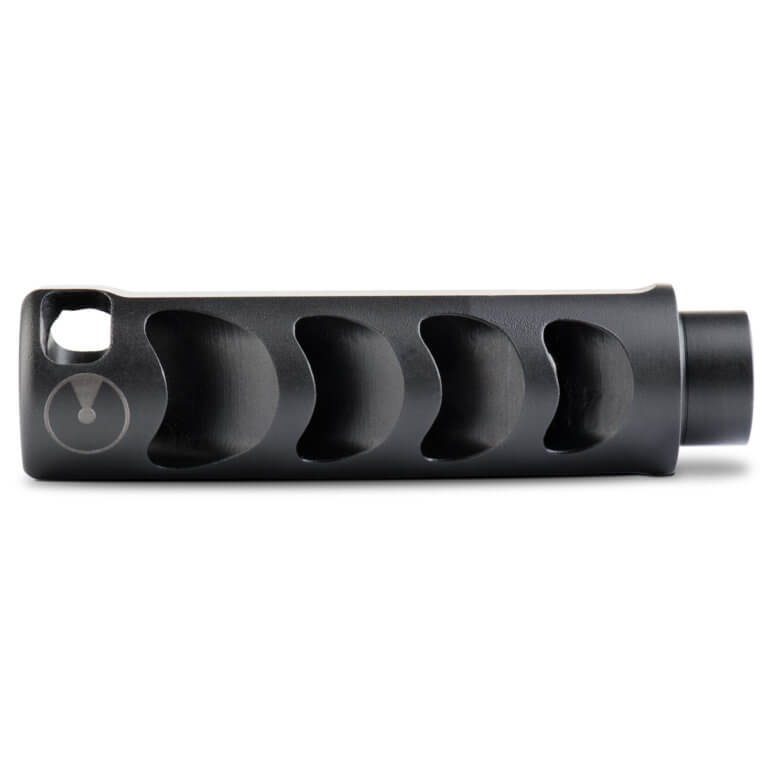

Unbeatable Reduction in Muzzle Rise with Less Aggressive Venting
The APOLLO Max from Ultradyne provides competition level recoil reduction and muzzle control. By using a scientific approach and studying thousands of recoil events, Ultradyne engineers have struck a balance between extreme recoil reduction, virtual elimination of muzzle rise, and less aggressive venting of gas. The Apollo S is perfect for shooters who want drastic recoil reduction with less perceived blast. The perfectly sized 5-Port design evens out the recoil event which produces an ultra smooth shot like no other compensator. A timing nut is included for easy installation.
ULTIMATE RECOIL REDUCTION
Class-leading performance.
416 Stainless Steel with ultra-rugged salt bath nitride finish.
Apollo 223 | 5.56 Technical Specs
- CALIBER .223 Rem/5.56 NATO
- BARREL THREAD 1/2-28 UNEF-2B
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 124 grams | 4.4 ounces
- Total 147 grams | 5.2 ounces
- DIMENSIONS
- Length 75mm | 2.94 inches
- OD 24.8 mm | 0.975 inches
- WRENCH FLATS 13/16 inch
Apollo Max 264 | 6.5 Technical Specs
- CALIBER
- Rated for the standard cartridges in the following calibers: 6.5 Creedmoor, 6.5 Grendel, 6mm Remington, 6mm Rem, 6mm BR, 25-06 Rem, 257 Roberts, 243 WSSM
- MINIMUM BARREL LENGTH 16″
- BARREL THREAD 5/8-24 UNEF-2B
- BARREL THREAD LENGTH MINIMUM .600″
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 130 grams | 4.5 ounces
- Total 156 grams | 5.4 ounces
- DIMENSIONS
- Length 75mm | 2.94 inches
- OD 24.8 mm | 0.975 inches
- WRENCH FLATS 7/8 inch
Apollo Max 308 | 7.62 Technical Specs
- CALIBER
- Rated for the standard cartridges in the following calibers: 308 Win, 7.62×51 NATO, 7.62×39, 300 AAC Black Out, 300 Savage, 303 Savage, 30-30 Win
- MINIMUM BARREL LENGTH 16″
- BARREL THREAD 5/8-24 UNEF-2B
- BARREL THREAD LENGTH MINIMUM .600″
- MATERIAL
- 416 Stainless Steel
- Salt Bath Nitride Finish
- MOUNTING Shrouded Timing Nut
- MASS
- Brake Only 130 grams | 4.5 ounces
- Total 156 grams | 5.4 ounces
- DIMENSIONS
- Length 75mm | 2.94 inches
- OD 24.8 mm | 0.975 inches
- WRENCH FLATS 7/8 inch
Have Questions About this Product?
The AT3 Tactical store has a 90 day no-hassle return policy for products in good condition. You can view the full details of our return policy here.
If you encounter an issue or defect with a product after 90 days of your purchase, you can refer to the manufacturer for a warranty claim. Their policies are below.
Ultradyne USA Warranty
- For warranty information about any Ultradyne USA products, you can email them directly at sales@ultradyneusa.com or call them at 573-299-0900.
Customer Reviews
Unit was placed on an Anderson Manufactured AM 15 barrel. This muzzle break was installed by a qualified armorer as the owner/operator/training unit officer recently had two ligaments tear on his right shoulder area. In order to reduce the recoil damage to the shoulder area the Ultradyne USA Apollo Max Muzzle Brake for an AR-15 was chosen.
The muzzle break worked perfectly in reducing the recoil BUT the gas as it escapes from the barrel in a side-to-side motion obviously intensified the noise to the point where several trainers using the weapon were extremely troubled by the excessive noise. The tremendous felt concussion that is created by redirecting muzzle gasses to reduce the recoil might be a negative if someone is choosing to install it. It also cause some blow back in the facial area.
In short, it is a well engineered addition and does what it is advertised to do,
Thanks for the detailed feedback, John! We'll be sure to pass this along to the manufacturer.
Big difference in recoil, I will keep it, but make sure to think about if light is attached and wear protective glasses because the gas really goes out back
Thanks for the review! We're glad to hear that the Apollo Max muzzle brakes made a big difference in recoil.
Worth the money... its loud but you will not regret it as you can unleash an entire mag without being off target
Thanks for sharing your feedback! We're glad you're satisfied with your purchase.
This is a great product, well built 100% satisfied.
Thanks for sharing your feedback! We're glad you're satisfied with your purchase.
