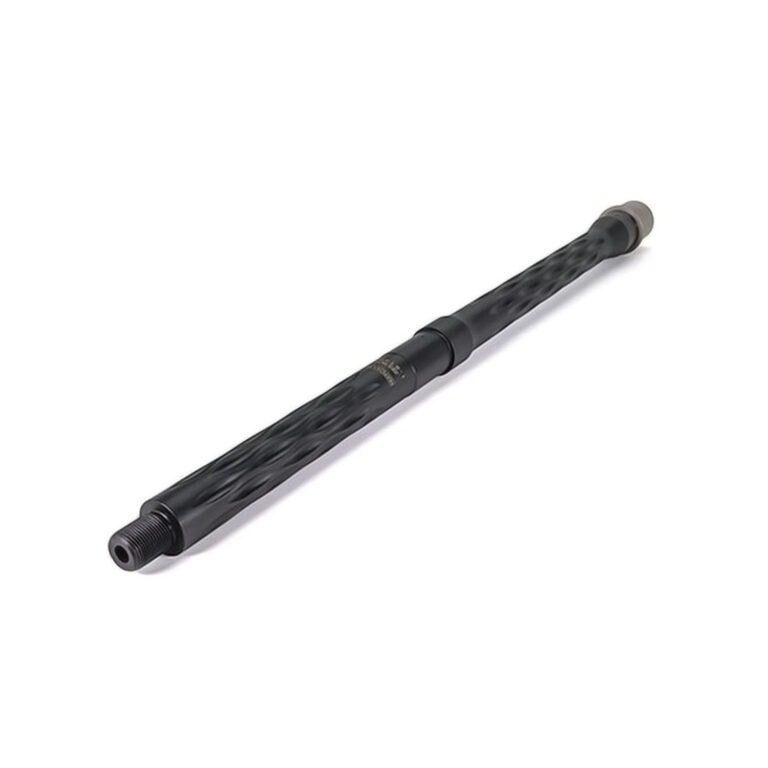

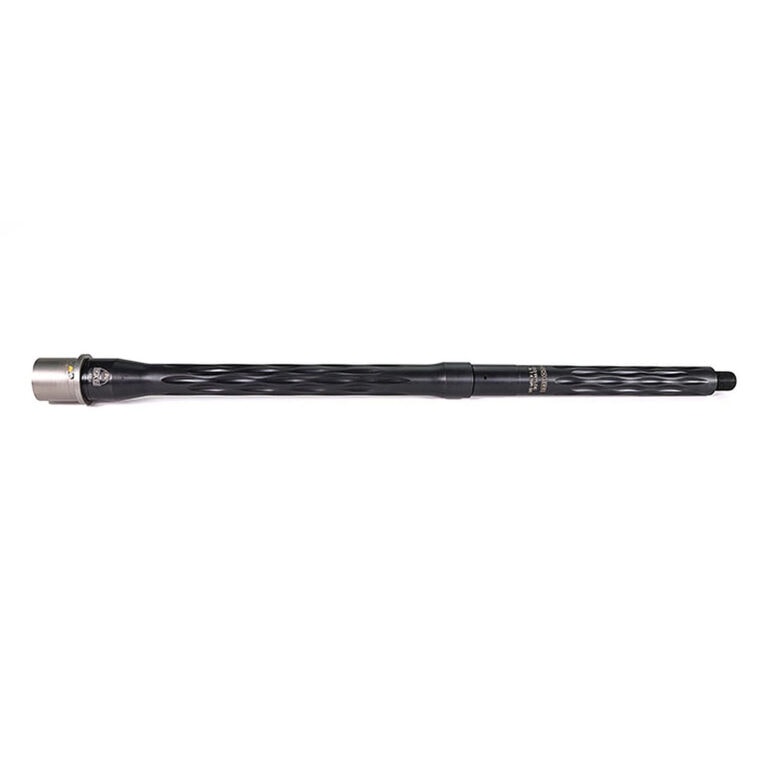

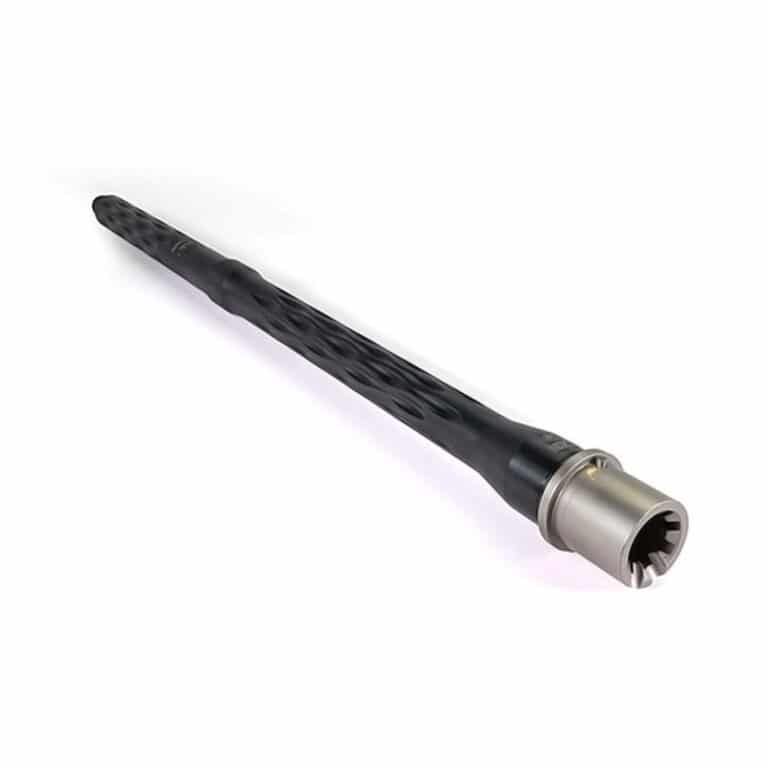

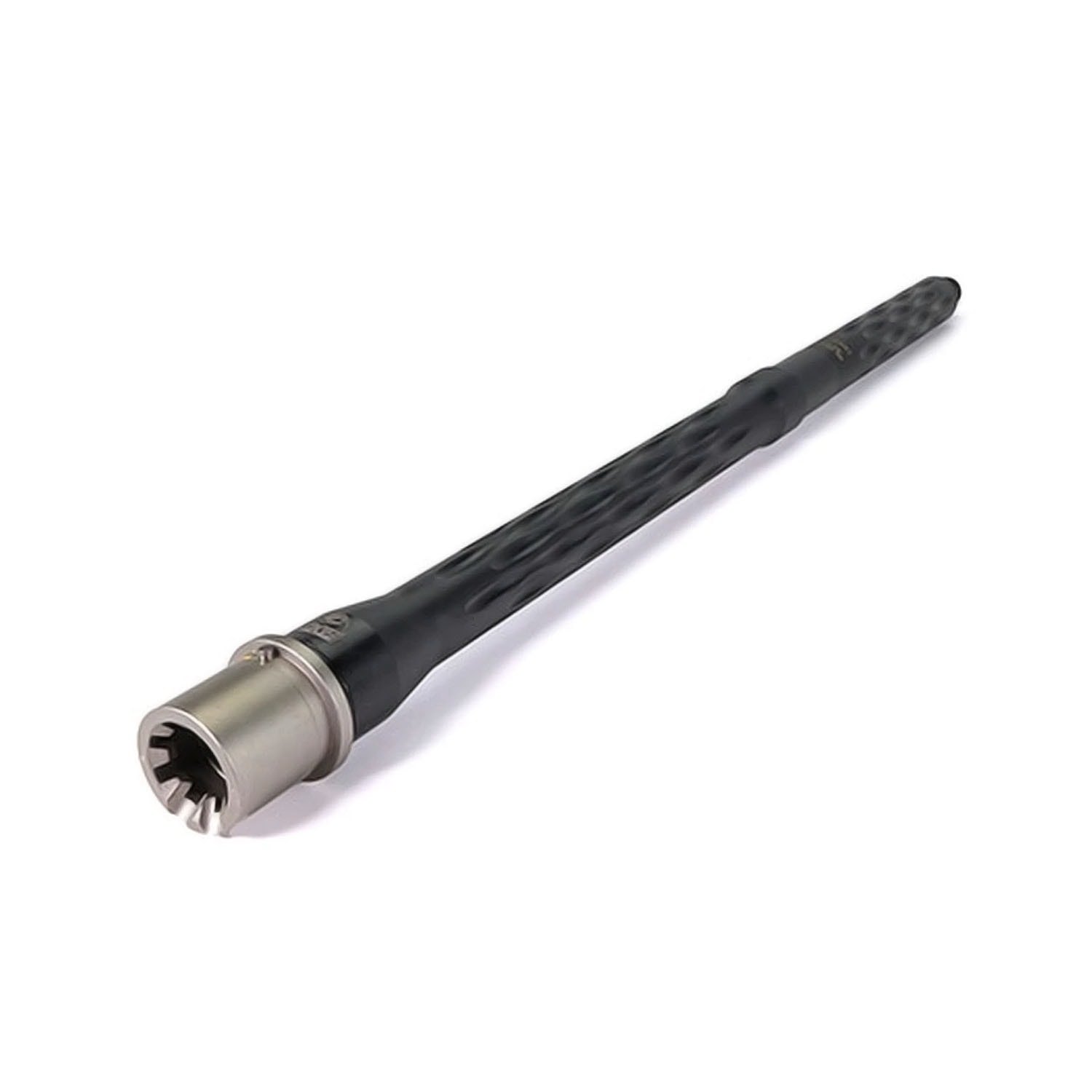

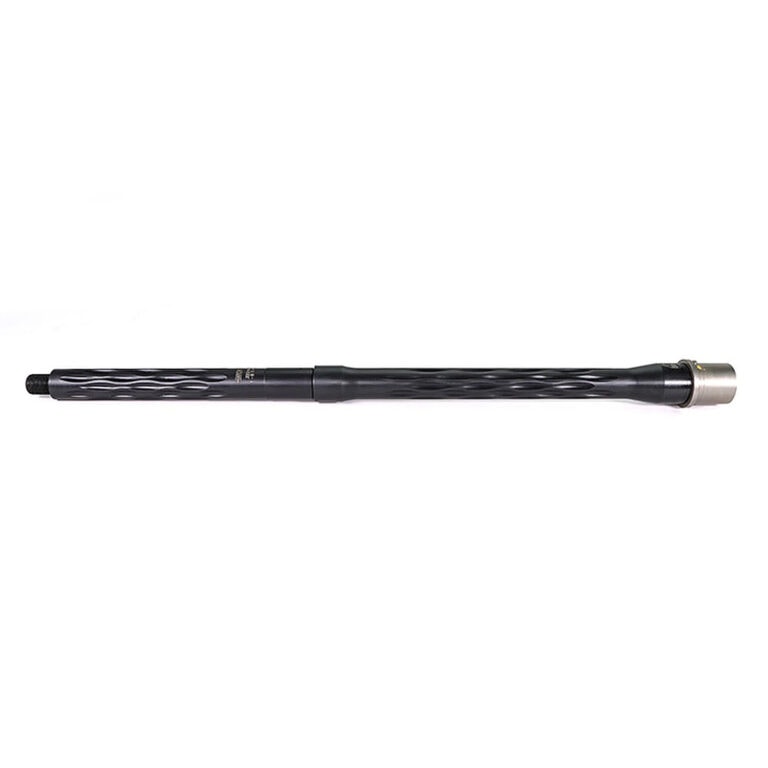

Faxon Firearms Match Series AR-15 Barrel – 16″ – .223 Wylde – Flame Fluted Profile – Mid-Length

Be the first to review

SKU: 15BW8M16LMQ-5R-NP3  |  UPC: 816341023147

Out of Stock
Orders will Ship within 1 Business Day
Backed by the Faxon Firearms Warranty!
Only 9 remaining. Order now!
TOP ADD-ON'S
AT3™ AR 15 Gas Tube & Carbine Gas Tube Length

AT3 Stainless Gas Tube with Roll Pins - Midlength

$14.39
Faxon Firearms Ultra Low-Profile Gas Block - Three Set Screws

Faxon Firearms Ultra Low-Profile Gas Block - .750"

$27.59

Unique Variable-Depth Flutes For Fantastic Performance & Good Looks

The Faxon Firearms Match Series – 16 inch Flame Fluted Barrel – .223 Wylde is an excellent option for your next build that offers unique variable-depth flutes for fantastic performance and an unmistakable look.

The custom, eye-catching flutes are machined in a way to look like the barrel is engulfed in flame, while offering the same advantages of traditionally fluted barrels – reduced weight and increased surface area to allow for quicker cooling compared to non-fluted profiles.

Triple Stress Relieved For Optimum Performance

The Faxon Firearms Match Series – 16 inch Flame Fluted Barrel – .223 Wylde are manufactured 100% in-house and goes through rigorous testing to ensure durability and optimum accuracy.

It is fully machined from GBQ 416-R stainless-steel and triple stress-relieved in order to ensure premium performance. These barrels are designed to work with any mil-spec AR-15 platform rifles.

Faxon’s MATCH SERIES of barrels takes our renowned performance and value up a notch.

Manufactured 100% in-house from gun-barrel-quality bar-stock, the Match Series starts with 416-R in 5R rifling. 5R is a hybrid rifling, with lands opposite grooves and reduced sharp angles that reduce jacket deformation increasing velocity, and easy cleaning. We chamber our Match Series in .223 Wylde, a hybrid chamber that the 5R rifling takes full advantage of. Better accuracy through less bullet jump, but fully and individually MPI tested for your safety. After rigorous testing, the barrels are Nitride treated inside and out, locking in the bore, improving barrel life, and keeping the elements at bay.

The extension is coated in Nickel Teflon which maintains incredible dry lubricity, corrosion resistance, and with the coating, tightens up fit between the extension and receiver – again improving upon accuracy. Combined, the Match Series of barrels are ready for when duty calls or the buzzer beeps with unrivaled performance value.

Specifications:

  • Barrel Material: 416-R Stainless
  • Barrel Type: 5R Button Rifled
  • Barrel Caliber: .223 Wylde
  • Barrel Length: 16″
  • Barrel Twist: 1:8
  • Barrel Profile: Flame Fluted
  • Barrel Gas System: Mid
  • Inside Finish: Salt Bath Nitride
  • Outside Finish: Salt Bath Nitride
  • Muzzle Thread: 1/2-28
  • Gas Block Diameter: .750″
  • Gas Block Journal Length: 1.1″
  • Barrel Extension: M4 – Nickel Teflon Coated
  • Barrel Weight: 1.78 Lbs
  • Crown Type: Recessed 11-degree Target Crown

Specifications:

Caliber.223 Wylde (5.56 or .223)
Barrel Length16 inches
Barrel Twist Rate1:8 inches
Barrel Material416 Stainless
Muzzle Threads1/2/2028
Barrel FinishBlack Nitride
Gas Block Size.750″ Gas Block
FitAR-15
Barrel ProfileFlame Fluted
Barrel Gas SystemMidlength
Gas Block Journal Length1.1 inches
Barrel ExtensionM4
Weight28.48 ounces
