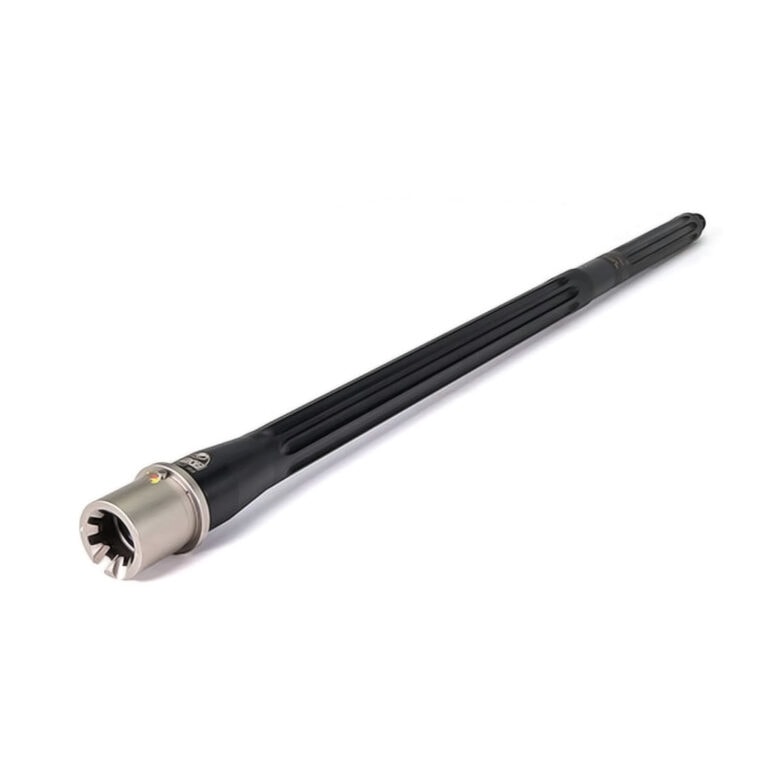

Faxon Firearms Match Series AR-15 Barrel – 20″ – .223 Wylde – Heavy Fluted Profile – Rifle Length

Be the first to review

SKU: 15BW8R20FHQ-5R-NP3  |  UPC: 816341023185

Out of Stock
Orders will Ship within 1 Business Day
Backed by the Faxon Firearms Warranty!
Only 2 remaining. Order now!
TOP ADD-ON'S
AT3™ AR 15 Gas Tube & Carbine Gas Tube Length

AT3 Stainless Gas Tube with Roll Pins - Rifle Length

$14.39
Faxon Firearms Ultra Low-Profile Gas Block - Three Set Screws

Faxon Firearms Ultra Low-Profile Gas Block - .750"

$27.59

Stainless Accuracy, Nitride Durability, and Faxon Quality

The Faxon Firearms Match Series – 20 inch Heavy Fluted Barrel – .223 Wylde is ideal for AR builds to achieve long-range accuracy and long-term durability. Most 416-R barrels don’t have much protection in the bore, leading to shorter barrel life than typical barrels.

These heavy fluted Match Series barrels from Faxon are unique with their QPQ finish, providing added resistance to corrosion and less friction down the bore, prolonging barrel life.

Unique Fluted Design To Dissipate Barrel Heat

The Faxon Firearms Match Series – 20 inch Heavy Fluted Barrel – .223 Wylde features a unique fluted design that not only looks great but also dissipates barrel heat to resist distortion to allow the shooter to take full advantage of the potential of the .223 Wylde chamber.

It also allows better projectile velocity and makes for an easier to clean bore than a traditional rifling pattern. These barrels are manufactured 100% in-house and gone through rigorous testing to ensure durability and optimum accuracy.

Faxon’s MATCH SERIES of barrels takes our renowned performance and value up a notch.

Manufactured 100% in-house from gun-barrel-quality bar-stock, the Match Series starts with 416-R in 5R rifling. 5R is a hybrid rifling, with lands opposite grooves and reduced sharp angles that reduce jacket deformation increasing velocity, and easy cleaning. We chamber our Match Series in .223 Wylde, a hybrid chamber that the 5R rifling takes full advantage of. Better accuracy through less bullet jump, but fully and individually MPI tested for your safety. After rigorous testing, the barrels are Nitride treated inside and out, locking in the bore, improving barrel life, and keeping the elements at bay.

The extension is coated in Nickel Teflon which maintains incredible dry lubricity, corrosion resistance, and with the coating, tightens up fit between the extension and receiver – again improving upon accuracy. Combined, the Match Series of barrels are ready for when duty calls or the buzzer beeps with unrivaled performance value.

Specifications:

  • Barrel Material: 416-R Stainless
  • Barrel Type: 5R Button Rifled
  • Barrel Caliber: .223 Wylde
  • Barrel Length: 20″
  • Barrel Twist: 1:8
  • Barrel Profile: Heavy Fluted
  • Barrel Gas System: Rifle Length
  • Inside Finish: Salt Bath Nitride
  • Outside Finish: Salt Bath Nitride
  • Muzzle Thread: 1/2-28
  • Gas Block Diameter: .750″
  • Gas Block Journal Length: 1.1″
  • Barrel Extension: M4 – Nickel Teflon Coated
  • Barrel Weight: 2.08 Lbs
  • Crown Type: Recessed 11-degree Target Crown

Specifications:

Caliber.223 Wylde (5.56 or .223)
Barrel Length20 inches
Barrel Twist Rate1:8 inches
Barrel Material416 Stainless
Muzzle Threads1/2/2028
Barrel FinishBlack Nitride
Gas Block Size.750″ Gas Block
FitAR-15
Barrel ProfileHeavy Fluted
Barrel Gas SystemRifle
Gas Block Journal Length1.1 inches
Barrel ExtensionM4
Weight33.28 ounces
