An Affordable Upper and Handguard Combo for Your Next AR-15 Build

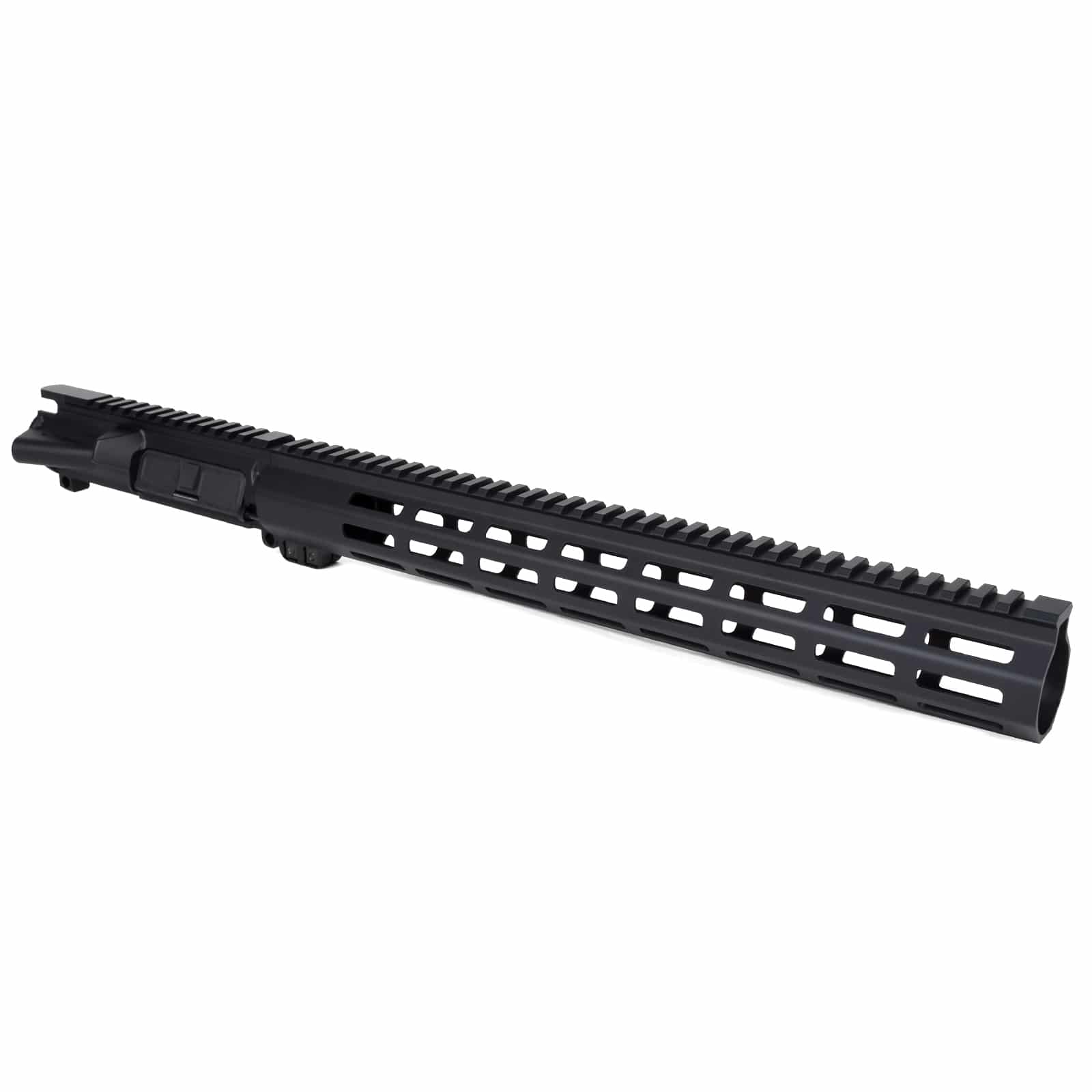

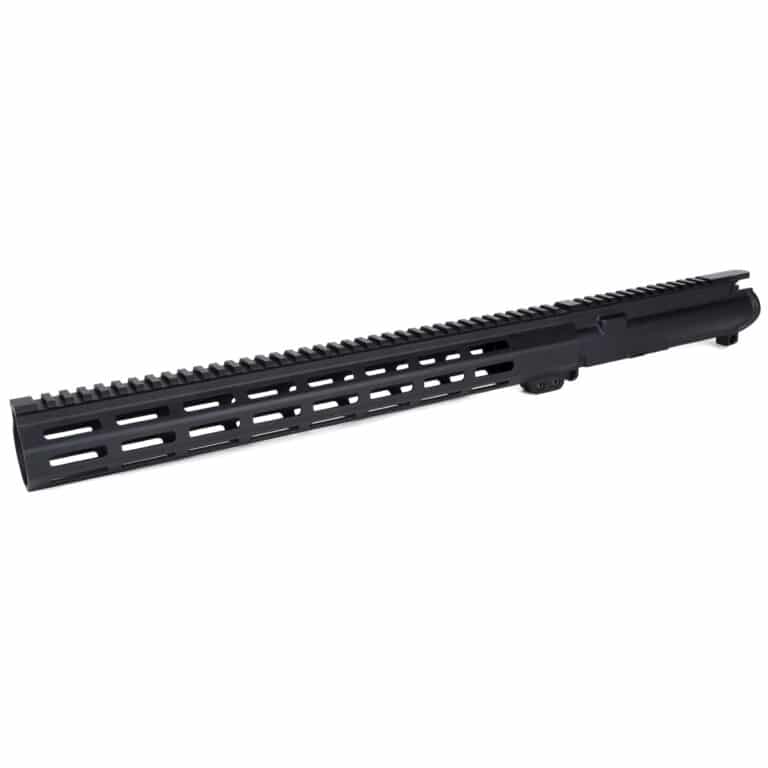

If you’re looking for a great value with all US-made parts, you’ve found the right place. Range Tool is a Minnesota based manufacturer, producing high quality pieces at affordable prices. This upper and handguard kit features a classic forged upper receiver, an upper parts kit with dust cover and forward assist, and a 15 inch M-LOK handguard with a full length top rail. Plenty of space for accessories, slim grip, and proven materials for a lifetime of use.
This kit needs a little bit of DIY know-how, but the possibilities are basically endless. Choose your favorite barrel, get a gas block and tube to match, a muzzle device, bolt carrier, and charging handle. And then, get to building your ideal upper, with parts you can trust at a price that won’t break the bank. You save money, and you get exactly what you want.
Barrel nut wrench not included.

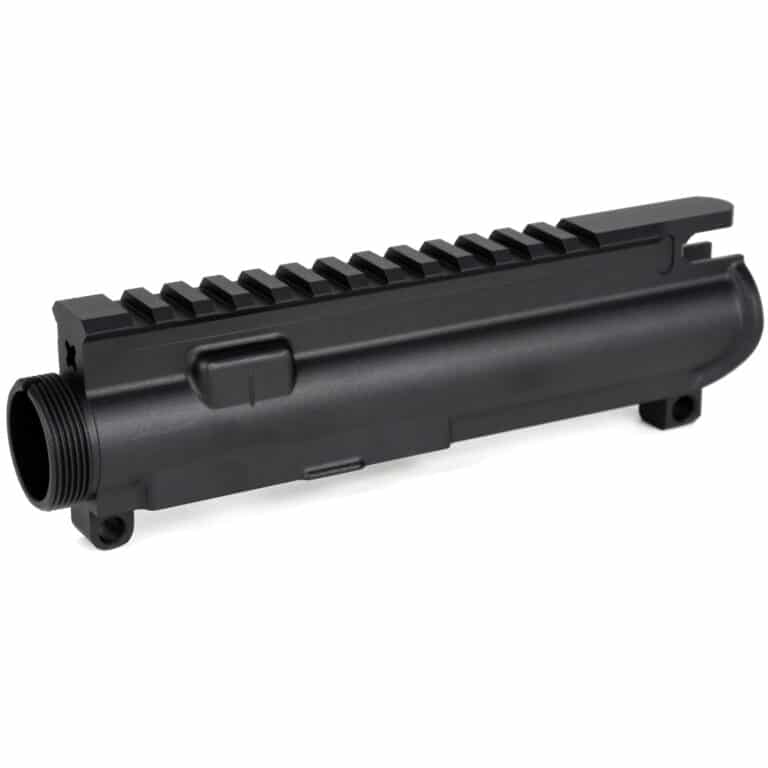

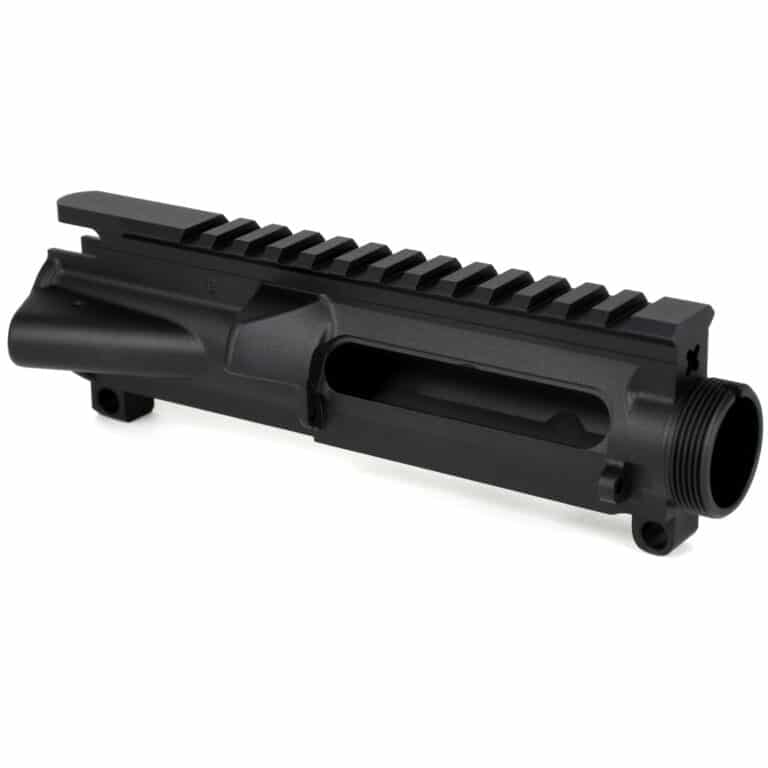

About the Range Tool Stripped Forged Upper
Whenever you’re starting a new AR-15 project, you choose the right components to get the job done right. And it doesn’t hurt if the price is right! That’s exactly what you’re getting with this stripped, forged upper receiver from Range Tool. This upper type is the military standard, made from 7075-T6 aluminum. It has a pocket for a forward assist, as well as a dust cover. This upper and handguard kit includes a dust cover assembly and a forward assist. All you have to do is put it together.
And of course, there’s the whole rest of the upper assembly to do! Pair this with the AT3 SPEAR M-LOK handguard, get it as a package with the Range Tool M-LOK handguard, with your choice of barrel, bolt carrier group, charging handle, and more. Do your AR-15 your way, and start with a quality stripped forged upper receiver from Range Tool.
Specifications:
- Rifle type: AR-15
- Material: Forged 7075-T6 aluminum
- Finish: Anodized Black
- Takedown pin holes: .250″ (Mil-Spec)
- M4 Feedramps: Yes
- Brass Deflector: Yes
- Forward Assist: Included, assembly required
- Dust Cover: Included, assembly required
- Weight: 6.9oz

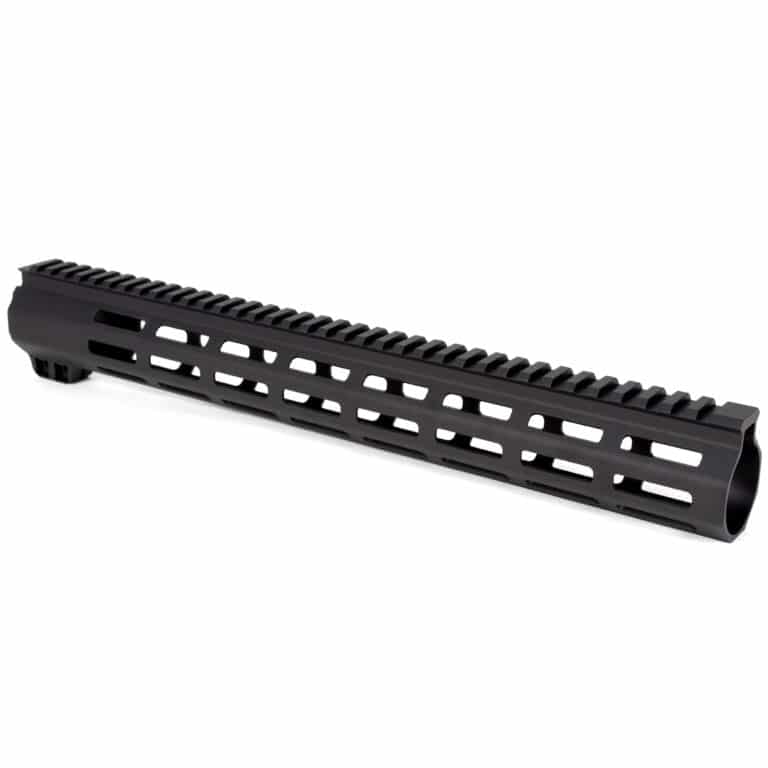

About the Range Tool M-LOK Handguard
Lean, functional, and affordable. That’s the philosophy behind this US-made free float M-LOK handguard from Range Tool. A high value AR-15 handguard that has all the features for building the gun you want, with none of the fat to cut down on cost. For the builder on a budget or a first-time upgrader, this is a great place to start on building a better, lighter, more accurate rifle.
In spite of the cost, this handguard is feature rich. A sturdy steel barrel nut ensures rigid lockup with your upper receiver, with anti-rotation tabs for extra security. The included screws and square nuts are steel as well, perfect for getting the correct torque value when installing, without fear of stripping the threads.
Seven sides of M-LOK slots spanning nearly the entire 15 inch length ensure you’ll have all the room for accessories like lights, lasers, and bipods that you’ll need. A full-length picatinny top rail also serves as a perfect place for backup sights and pressure pads for lights.
If you’re looking for all the features that the big boys have for their handguards, this high value AR-15 handguard is a perfect upgrade for your next project.
Ounce for Ounce Value
- Free-floating your handguard will improve accuracy .5″ to .75″ MOA compared to drop-in handguards
- The slim profile and smooth finish makes the rail easy to grip for any shooter
- 6061-T6 aluminum construction retains light weight, with a steel barrel nut for rigidity
- 7 sides of M-LOK for all your favorite accessories, plus a full length picatinny top rail
- Hard coat anodized to protect against wear and tear at the range, and in the field
- Proudly made in the USA on the Minnesota Iron Range!
Simple Installation
- The Range Tool Handguard installs in just a few steps on a forged upper receiver, with minimal tools required
- A 30mm Crow’s Foot Wrench works best for installing the barrel nut
- Once the handguard is secure, choose whatever M-LOK accessories you like to make it your own
- Check out the video below for Installing our AT3 SPEAR handguard – the Range Tool version isn’t much different!
Installation Guidelines
- Use a lithium moly grease or something similar on the receiver threads and barrel nut
- Torque the barrel nut to 30-60 ft-lbs using a torque wrench
- Align the top of the handguard with the picatinny rails on your upper receiver
- When installing the nuts and screws, torque the screws to 30 inch-lbs. Use blue threadlocker if you’ve got it!
Note: most rifle setups will require the use of a low profile gas block that sits under the handguard.

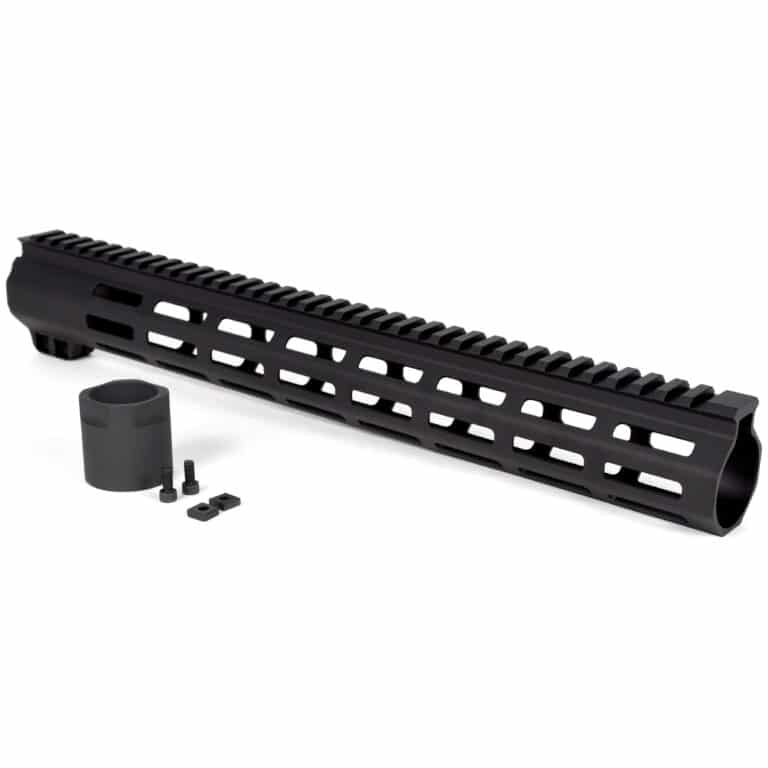

Included in the box:
- 15″ M-LOK Handguard
- Steel Barrel Nut
- 2 Screws
- 2 Square Nuts
- Allen Wrench
Specifications:
- Rifle Type: AR-15
- Material: 6061 Aircraft Aluminum
- Finish: Hard-coat anodized (matte black)
- Handguard inside diameter: 1.38”
- Handguard outside diameter (side to side): 1.53″
- Weight: 12.7 oz. including barrel nut and hardware
- Length: 15″
Frequently Asked Questions:
Will this fit my AR-15?
The Range Tool handguard is designed for use with standard forged (AKA mil-spec) upper receivers. When you buy this kit, you’re guaranteed to have a good fit for upper to handguard.
What tools and additional parts are required?
For parts – almost every setup will require a low profile gas block for your barrel.
For tools – we recommend:
- 30mm Crow’s Foot Wrench with 1/2 inch drive for the barrel nut
- AT3 Barrel Nut Wrench – it will work with the Range Tool barrel nut, but may be a tight fit
- A vise and non-marring vise block for holding the upper
- A torque wrench to assure you stay in the AR-15 barrel nut torque range while timing the barrel nut (30-60 ft lbs)
