Swampfox Optics Ultimate Red Dot Mounting Screw Pack

Be the first to review

SKU: SP-RDS-16  |  UPC: 889157001791

Out of Stock
Only 1 remaining. Order now!
TOP ADD-ON'S
Armorer's Wrench for AR-15 & Multi-Function Tool by AT3™

Armorer's Wrench for AR-15 Multi-Function Tool by AT3™

$18.39
Wheeler AR Front Sight Tool  - 156437

Wheeler AR Front Sight Tool - 156437

$10.99

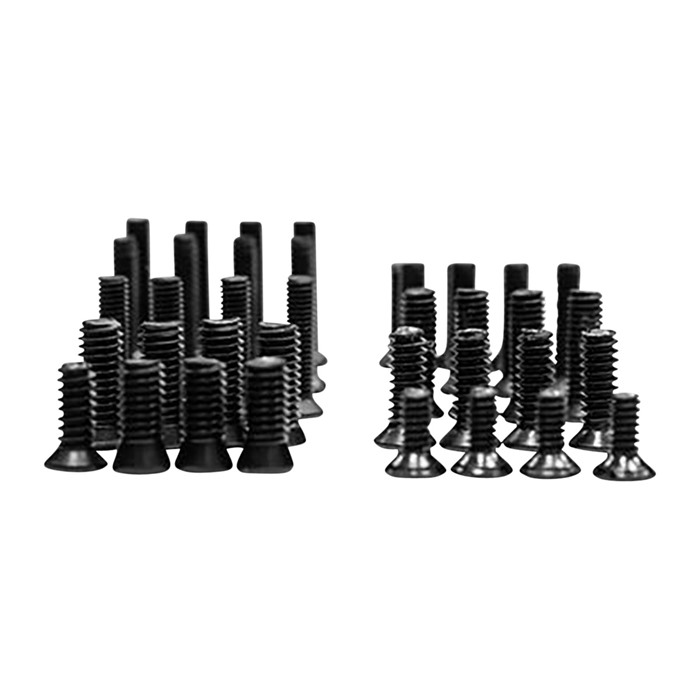

Swampfox Ultimate Red Dot Mounting Screw Pack – Multi-Thread T10 Optic Hardware Kit

Features

  • 14 four-screw sets covering common optic mounting thread pitches
  • T10 Torx drive with small-diameter heads (5.0mm, #6-32 at 5.5mm)
  • Designed for Swampfox Kingslayer, Liberty, Justice, Sentinel, and Ironsides Shield
  • Covers factory slides, MOS plates, adapter plates, dovetail mounts, and Picatinny mounts
  • Includes extended-length DIY screws (14.0mm EL) for custom fitment

Mounting pistol optics is rarely one-size-fits-all. The Swampfox Ultimate Red Dot Mounting Screw Pack provides a practical range of thread pitches and effective lengths to address real-world fitment issues across slides, plates, and mounts. Extra-long DIY sets are intentionally oversized so you can trim for a precise, custom fit when standard screws do not quite work.

NOTE: Though Swampfox calls out specific red dots, many of these screws are the most common for 90% of red dot optics out there. It’s just that fitment may be needed.

General Specifications

  • Drive Type: T10 Torx
  • Head Diameter: 5.0mm (all except #6-32 at 5.5mm)
  • Maximum Torque: 15 in-lbs
  • Threadlocker: Blue threadlocker recommended
  • EL (Effective Length): Measured from end of threads to widest point under screw head

Fitment Guide

  • Swampfox Optics
    • Kingslayer / Liberty / Justice: M3.5 x 0.6, EL 11.0mm
    • Sentinel-A / Sentinel-M: M4 x 0.7, EL 10.1mm
    • Ironsides Shield: #6-32 x 0.39, EL 10.0mm
  • Factory Slides and Plates
    • Glock MOS / Canik TP9 / Others: M4 x 0.7, EL 14.0mm
    • Brownells Glock and similar cuts: #6-32 x 0.374, EL 9.5mm
    • Some Canik Elite SC: M4 x 0.7, EL 8.6mm
    • Springfield Hellcat: M3 x 0.5, EL 12.0mm
    • SIG P365XL: M3 x 0.5, EL 12.0mm
  • Picatinny Mounts
    • #4-40 x 0.250, EL 6.35mm
  • DIY Extra-Long Sets for Custom Fitting (EL 14.0mm)
    • #6-32 x 0.551
    • #4-40 x 0.551
    • #6-40 x 0.551
    • M3 x 0.5
    • M3.5 x 0.6
    • M4 x 0.7

What’s Included

  • 14x Four-screw mounting sets in assorted thread pitches and lengths
