True integral, SD-style suppression on a 9mm PCC used to be a dedicated proposition. You either bought a purpose-built system with a ported barrel under a fixed suppressor volume, or you accepted the compromises that came with bolting a conventional can onto a standard barrel: the sharp crack of supersonic 115- and 124-grain ammo, the need to hunt for premium 147-grain subsonics, and the extra length and weight of adapters or muzzle devices just to get the can mounted.
That trade still matters if you’re building a compact, suppressed 9mm PCC you actually want to shoot a lot. Most factory loads leave the muzzle fast enough to crack, specialty subsonics cost more and aren’t always available, and traditional short barrels plus a separate can tend to get long, gassy, or picky once you start going after both reliability and the slick tucked look. A lot of modern builds have simply lived with the noise and the ammo compromise, but that’s not the case with the Novox X-SD on the market now.
The Novox X-SD Barrel System puts that SD-style performance back into a retrofit kit. It uses a short ported barrel and a shroud that mounts directly to Alpha or Bravo/HUB suppressors, so common 115 and 124-grain loads can drop into the subsonic range while your existing can does the rest of the work without requiring a dedicated integral suppressor or locking you into one mounting system.
- Who is Novox Research
- What the Novox X-SD Is
- Specifications
- Carlos – Our Novox X-SD Build on the Range
- Who This is Actually For
- Things You Need to Know Ahead of Time
- Final Thoughts on the X-SD System
Who is Novox Research
Novox Research is a small Arkansas company started by a full-time paramedic named Jacob who set out to fix the usual problems with turning a 9mm PCC into a true SD-style host. In early 2024 the founder was saving for a CZ Bren 2 when a popular video cleaned out the inventory, so he bought a Scorpion 3+ instead. After running into the normal limitations of existing integral kits, he texted a machinist friend on the night of April 23, 2024 with the idea of designing something better. He taught himself CAD, worked through the sealing and gas-management issues, and the project became the modular X-SD barrel and shroud system.
Jacob still runs the company the same way it started just a few years ago, small and hands-on like a scrappy manufacturing startup. The barrels and assemblies are made from hardened 416 stainless and nitride coated in the U.S. He personally answers customer questions himself, sometimes at odd hours because of his day job, so be aware of that if you’re reaching out to them for support. You might get a response at 4:30 AM.
On the note of warranty processes, the Novox solution is simple and straightforward. If you manage to mangle one enough, contact them and they’ll replace it. Before the X-SD, the work was focused on solving the common complaints about earlier SD-style conversions, o-ring seals, proprietary barrel nuts and handguards, and systems that locked you into one suppressor mount. Novox is not a general AR company that decided to try a ported barrel. They built the X-SD specifically to make a true SD-style setup practical on platforms people already own, and they’re still growing today.
What the Novox X-SD Is

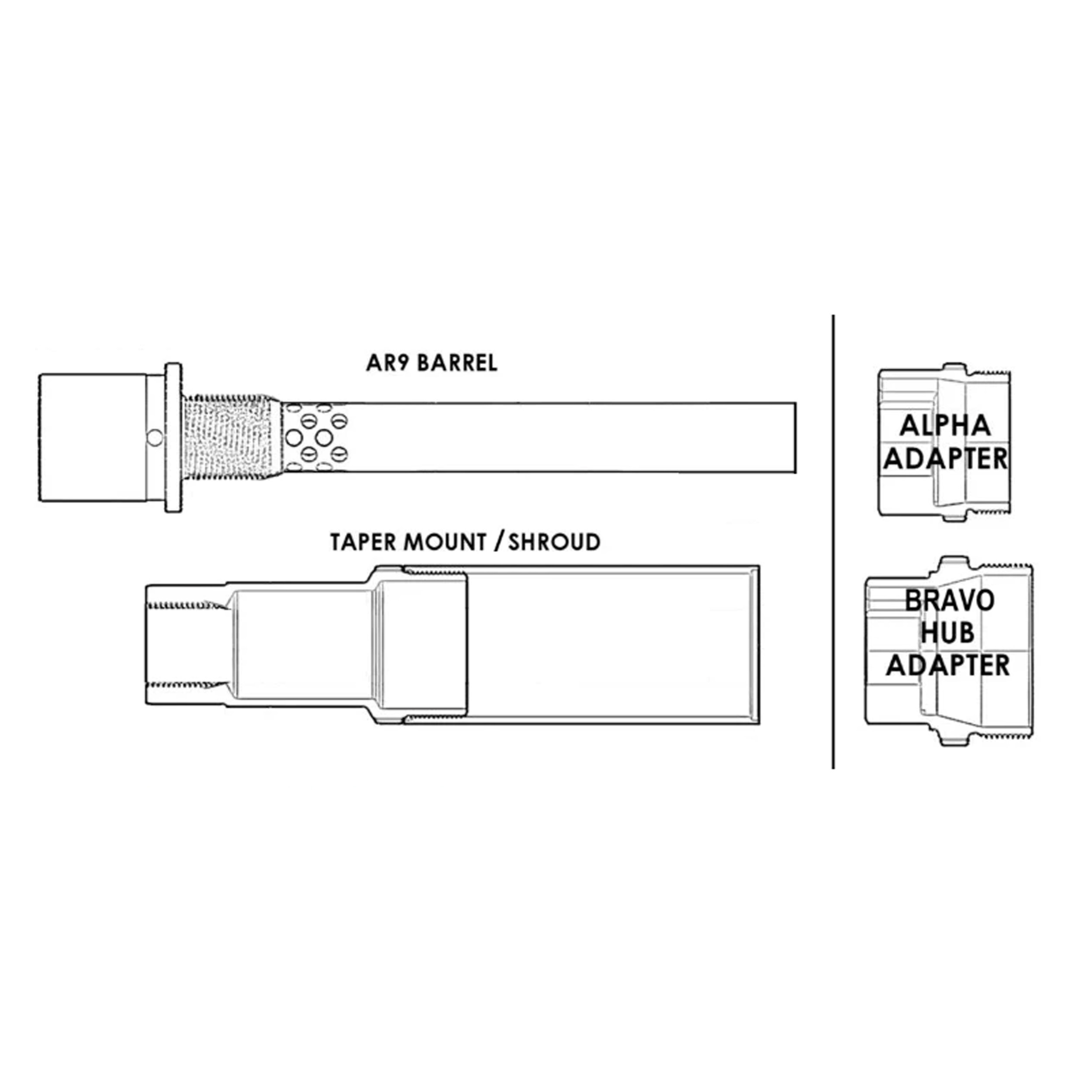

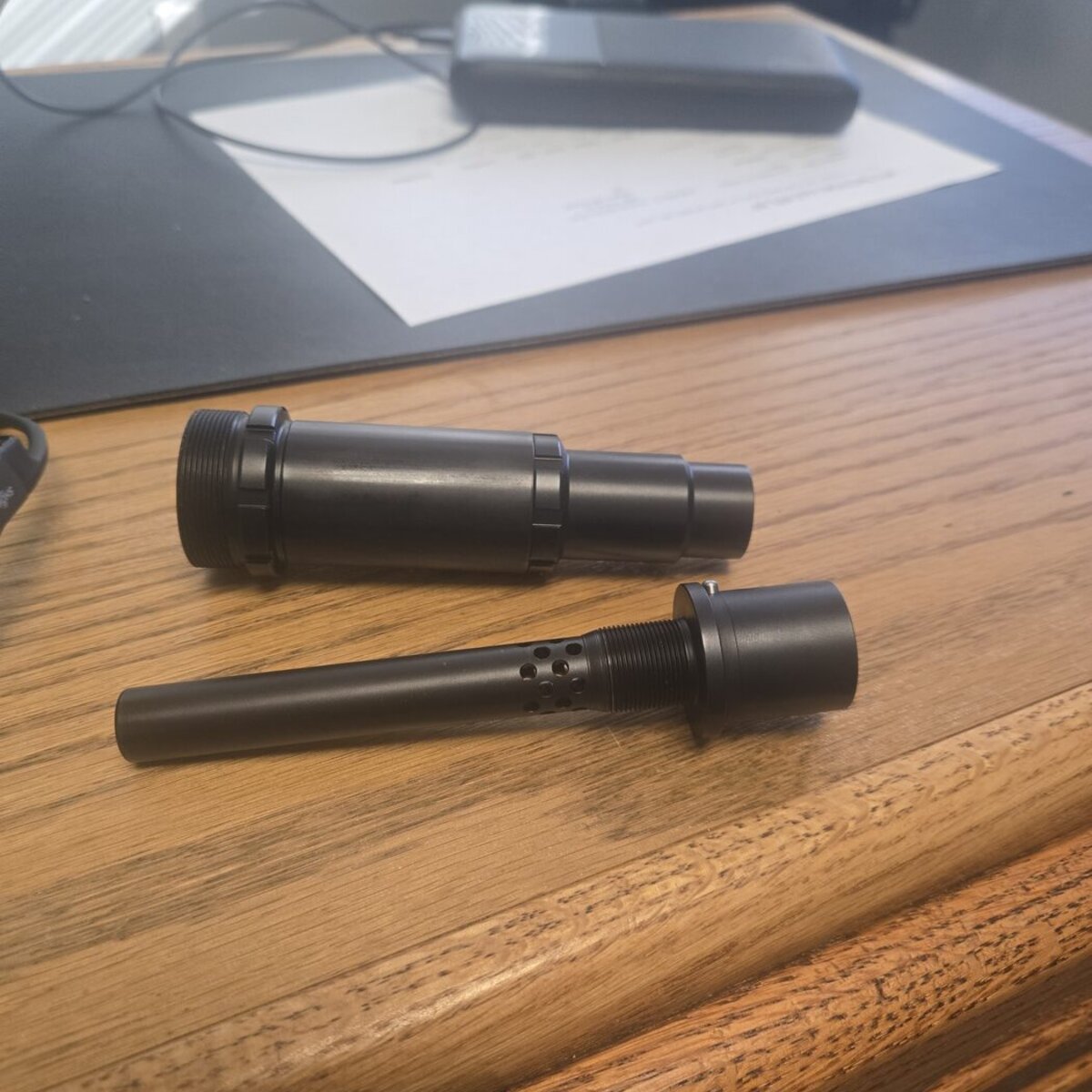

The Novox X-SD is a complete barrel and shroud kit, not a standalone barrel or a dedicated integral suppressor. The set runs right around $350 at the time of this writing and includes a 4.3-inch ported 9mm barrel with a 1:10 twist, a taper adapter, the main shroud tube, and both the Alpha (1.125×28) and Bravo/HUB (1.375×24) mounting modules. Variants exist for traditional blowback AR9 platforms and the CZ Scorpion/Nexus Evo, with more platforms in the works.
The X-SD replaces the factory barrel and works with most standard-length AR barrel nuts (2.24 inches or shorter). It’s not a drop-in for every 9mm PCC, and the suppressor itself is not included.
The barrel-to-taper threads are proprietary, and the assembled system measures about 4.92 inches from the receiver face with the Alpha module or 5.2 inches with the HUB module. Maximum outside diameter is roughly 1.27 inches with the Alpha module and 1.5 inches with the HUB module, so handguard clearance is the main fit check. It can also be run without a suppressor as a blast diffuser or as a linear compensator if you just want the velocity reduction and forward blast control.
The measurement that usually decides the build is handguard internal diameter and length. A short 5-inch rail is neither stable nor comfortable once the can is mounted, and the X-SD is designed to be tucked beneath the handguard. Large-diameter handguards that clear the shroud (and the can) let you cover most of a compact suppressor while keeping overall length down, which is the setup we ran with a 9.25-inch Midwest Industries SP handguard over a 5.3-inch Huxwrx 9K Ti.
Specifications
| Piece | Length / Size | Material / Finish | Mount / Fit |
|---|---|---|---|
| Ported Barrel | 4.3″, 1:10 twist | Hardened 416 stainless, nitride | Proprietary threads to taper adapter (not M18) |
| Taper Adapter + Tube | Assembled ~4.92″ (Alpha) or 5.2″ (HUB) from receiver face | Hardened 416 stainless, nitride; Rocksett-bonded from factory | Fits barrel nuts ≤ 2.24″ long |
| Alpha Module | Included | Hardened 416 stainless, nitride | 1.125×28; max OD ~1.27″ |
| Bravo/HUB Module | Included | Hardened 416 stainless, nitride | 1.375×24; max OD ~1.5″ |
Carlos – Our Novox X-SD Build on the Range

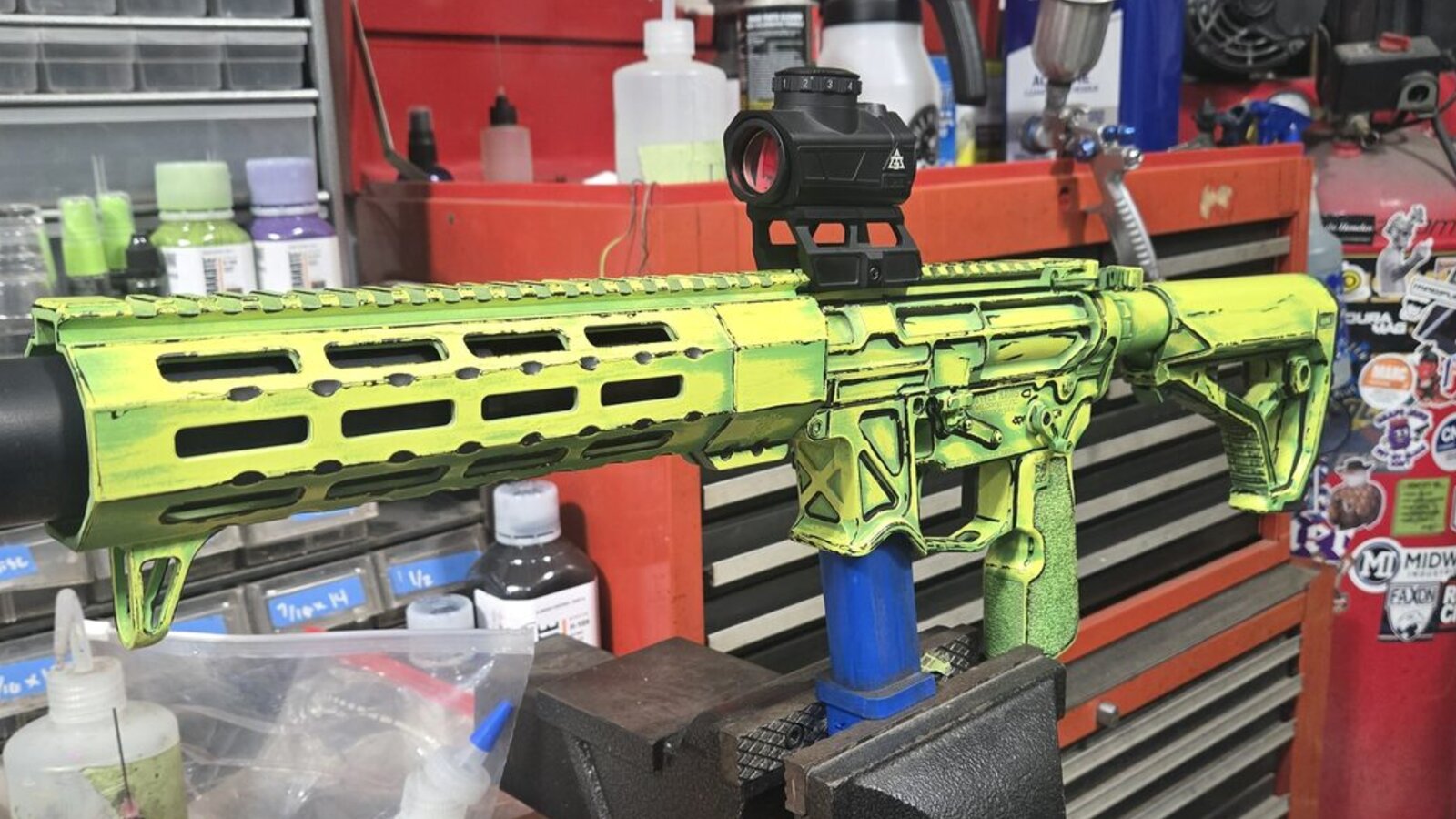

We ran the X-SD on a Battle Arms Development XIPHOS PCC upper and lower, paired with a Kaw Valley Precision 9mm BCG and a hydraulic Kynshot 9mm Heavy Buffer System. The first thing that stood out was how soft and quiet the gun was. It is, without a shadow of doubt, the softest-shooting, quietest 9mm PCC we have ever built, and it has run without issues since the first trip to the range.
Most 9mm builds can be picky or need some tuning, which we’ve run into before. The combination of the X-SD, the KVP BCG, and the BAD XIPHOS receivers didn’t cause any issues with the build. The porting on the barrel drops velocity enough that common loads are likely to go subsonic, so we didn’t have to chase premium ammo to get the suppression we were looking for here.

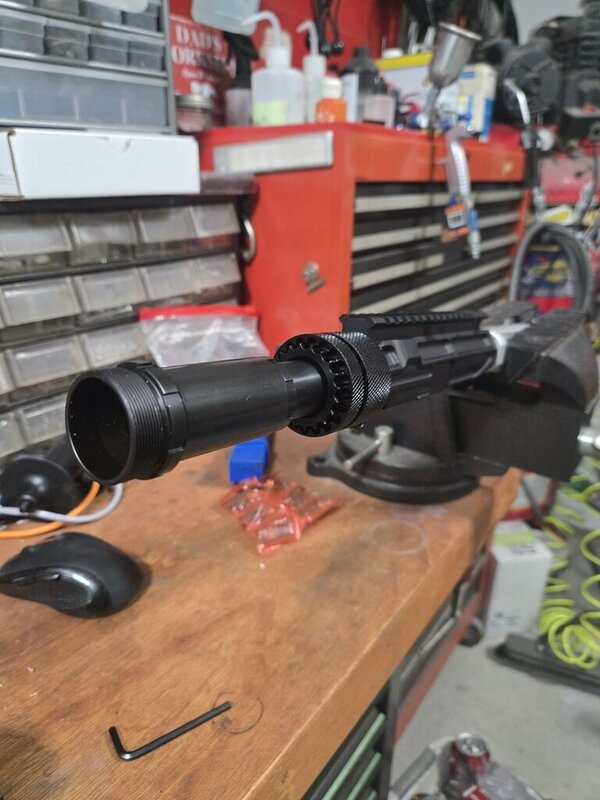

For the record, we didn’t do formal group testing or try the system unsuppressed as a blast diffuser. The practical goal was a compact, tucked, reliable suppressed PCC that stayed pleasant to shoot, and that’s where we went straight from the start on this build. For that, we used a Midwest Industries SP handguard in 9.25-inch length to cover a 5.3-inch Huxwrx 9K Ti. Because the X-SD mounts Alpha or Bravo/HUB cans directly, we skipped the usual direct-thread adapters or QD devices that add length and weight. That kept the overall package shorter and lighter while still giving a properly tucked look.

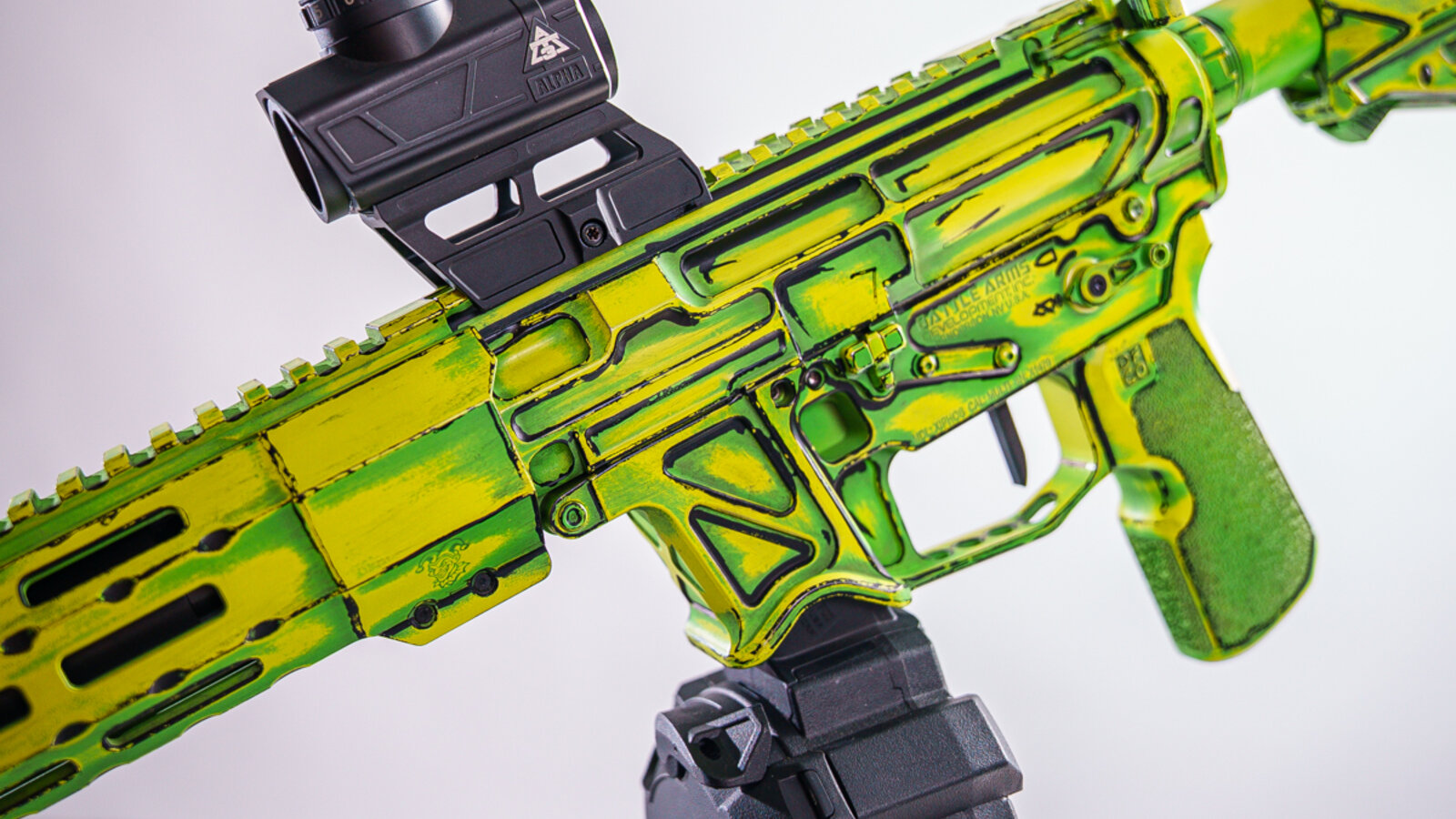

Overall, this made for one of the best suppressed 9mm builds we’ve ever done, and it enabled Carlos to be one of the coolest guns in our safe. See the full Carlos 9mm PCC Dream Gun Build Kit.
Who This is Actually For
Good fit:
- A suppressed 9mm PCC build where you already own (or plan to use) an Alpha or Bravo/HUB can and want SD-style velocity reduction without buying a dedicated integral suppressor.
- An AR9 or Scorpion/Nexus host that can take a barrel nut 2.24 inches or shorter and a large-diameter handguard that clears the shroud for a tucked look.
- Builders who want to run common 115 and 124-grain ammo and still get subsonic performance instead of hunting for premium 147-grain loads.
- A range or home gun that will live mostly in one configuration rather than being swapped between setups.
Poor fit:
- Anyone chasing the lightest possible package. The shroud and tucked can add bulk compared to a bare short barrel and direct-thread mount.
- Hosts that can’t meet the barrel-nut length limit, don’t clear the outside diameter, or aren’t a supported platform (traditional blowback AR9 or Scorpion/Nexus).
- Builds that require a specific muzzle device, non-HUB/Alpha mount, or that won’t be run suppressed.
A standard barrel and conventional can still win if you just need a basic suppressed 9mm PCC. The X-SD wins when the goal is true SD-style suppression and a compact tucked package with the suppressor you already own.
Things You Need to Know Ahead of Time
The proprietary threads between the barrel and taper mount adapter exist so the system can seal with a taper instead of an o-ring. You assemble it with the included parts. This is not a suppressor by itself, and will require a little bit of extra work during the build process.
The fit limits are also very real. A barrel nut longer than 2.24 inches or a handguard that can’t clear the shroud diameter will stop the install or prevent a clean tuck. On our build a longer, large-diameter rail was what made the tucked look work. If you want more information on potential handguards for a build like this, check out this article we put together on suppressor ready handguards.
Cleaning is also more involved than a standard barrel and direct-thread mount. The ported design and shroud mean carbon builds up inside the system, so plan on breaking it down rather than treating it as a sealed unit.
Final Thoughts on the X-SD System
The X-SD is a practical way to get true SD-style suppression on a 9mm PCC you already own, using the Alpha or Bravo/HUB suppressor you already have. Once it’s on the rifle it’s not a novelty at all. On our build it delivered the softest-shooting, quietest 9mm PCC we have ever put together, and it ran without the tuning issues that show up on a lot of other 9mm setups.
Three things have to be true for it to be the right buy for you. You need a supported host (traditional blowback AR9 or Scorpion/Nexus) that can take a barrel nut 2.24 inches or shorter. You need an Alpha or Bravo/HUB suppressor you want to mount directly. And, you need to be willing to run a longer, large-diameter handguard if you want the tucked look that makes the system compact.
In our opinion, it’s the right buy if you’re building a dedicated suppressed 9mm PCC and want SD-style performance with common 115- and 124-grain ammo instead of a conventional barrel and specialty subsonics. It’s not the right pickup if you need the lightest possible package, are already running a non-supported platform, or if the firearm you’re building won’t live in a tucked suppressed configuration.
