AT3™ AR 15 Gas Tube with Roll Pin - Carbine
AT3™ AR 15 Gas Tube with Roll Pin - Midlength

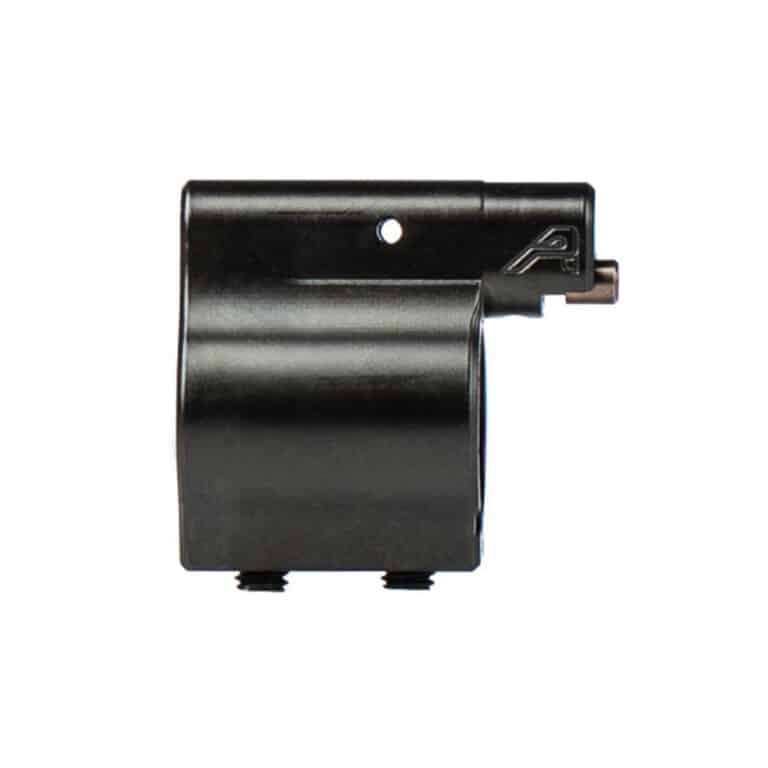

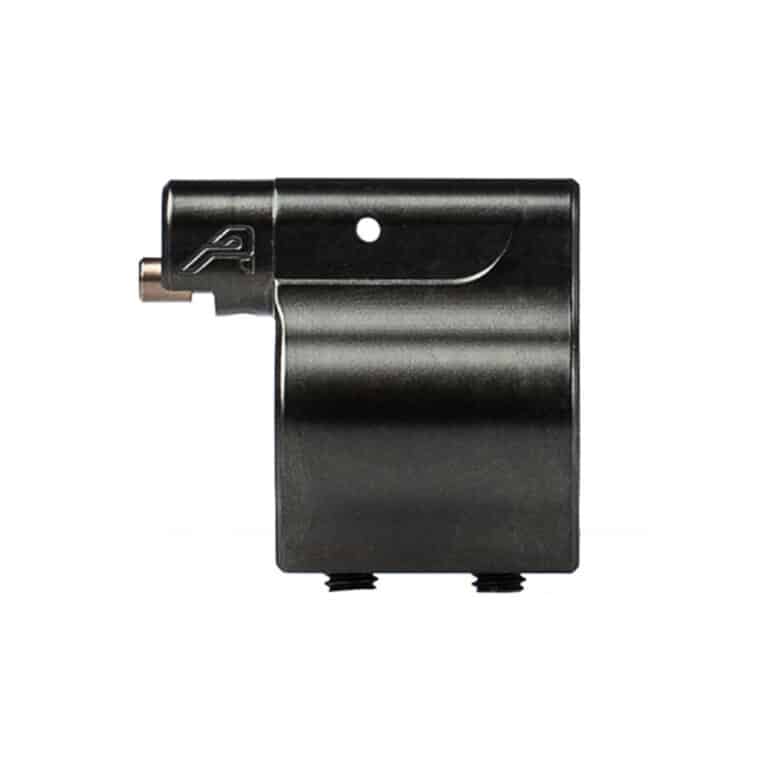

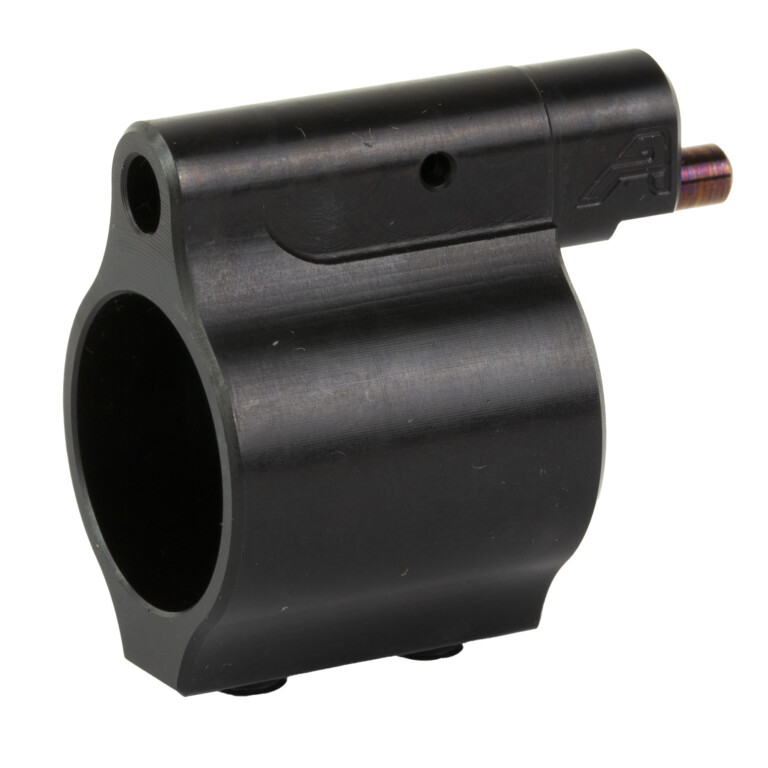

Aero Precision Adjustable Gas Block
Aero Precision’s new adjustable gas blocks come in all standard AR-15 gas block sizes, and fit under free-float handguards. The gas block attaches to the barrel using the included set screws, and work with regular AR-15 gas tubes. Once installed, you can easily adjust the rifle’s gas flow from the forward adjustment screw, with 15 settings of positive, audible clicks.
Will this fit under my free float handguard?
These gas blocks are especially designed to fit under slim free-float handguards. Since the adjustment hardware is forward of the gas block, the profile remains slimmer compared to other gas blocks. The AT3 SPEAR M-LOK Rail and Quad Rail, the Aero ATLAS S-One and R-One, and more will work great with these gas blocks. If you’re unsure of the fit, just reach out to us so we can assist you!
How To Install the Aero Adjustable Gas Block
First, you’ll need to remove your standard gas block and tube from your rifle. Slide the Aero Adjustable Gas Block onto your barrel, and align it over with your barrel’s gas port. Then, secure the set screws at the bottom to the barrel, tightening to 30 inch pounds. For extra security, apply a small amount of high-temperature threadlocker to the bottom set screws.
Note: Do not use threadlocker of any kind on the gas block adjustment screw. Only use threadlocker on the set screws that attach the gas block to the barrel.
After the threadlocker cures, secure your gas tube to the gas block with a roll pin. For more info on how to set up your gas block at the range, check out this guide to installing and tuning your gas block.
Features
- Standard low-profile design provides great fit under slim profile free float handguards including the Aero Precision ATLAS series of handguards
- Adjustment screw is held in place by a spring and detent, providing repeatable audible “clicks” upon adjustment removing the need for secondary set screws that can come loose under recoil
- Custom machined stainless-steel adjustment screw provides 15 gas adjustment settings
- Carbon fouling is channeled to a sacrificial chamber to help prevent carbon locking, as well as provide an access point for solvent in the event carbon locking does occur
- User-serviceable design allows for service and cleaning of the gas system
Includes
- Assembled Adjustable Gas Block

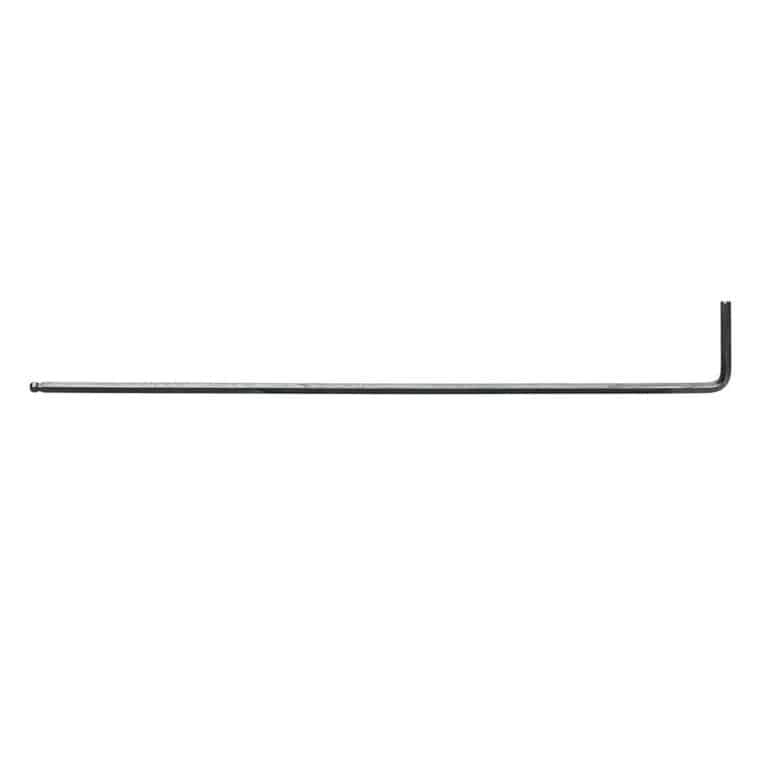

- One 6″ 3/32 adjustment wrench for easy gas block adjustment underneath installed handguard
- Replacement spring and detent included
Specifications
- Fit: AR-15 and AR-10 Platform
- Material: 4140 Steel
- Finish: Black Nitride
- Weight: 1.4 oz
Products available on this page:
- Aero Precision Click Adjustable AR-15 Gas Block - Gas Block Size: .750" Adjustable Gas Block | SKU: APRH101614C

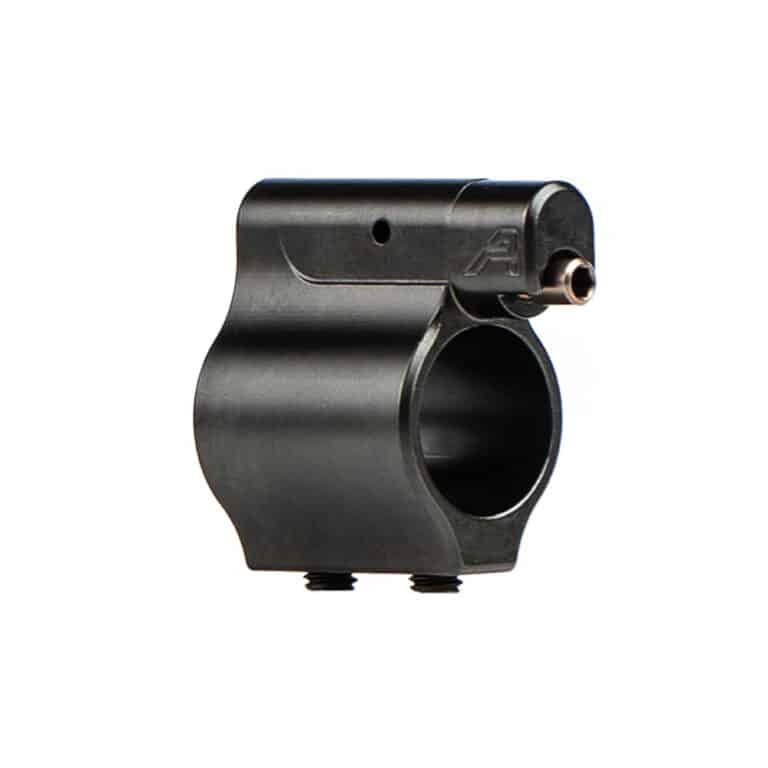

- Aero Precision Click Adjustable AR-15 Gas Block - Gas Block Size: .625" Adjustable Gas Block | SKU: APRH101613C

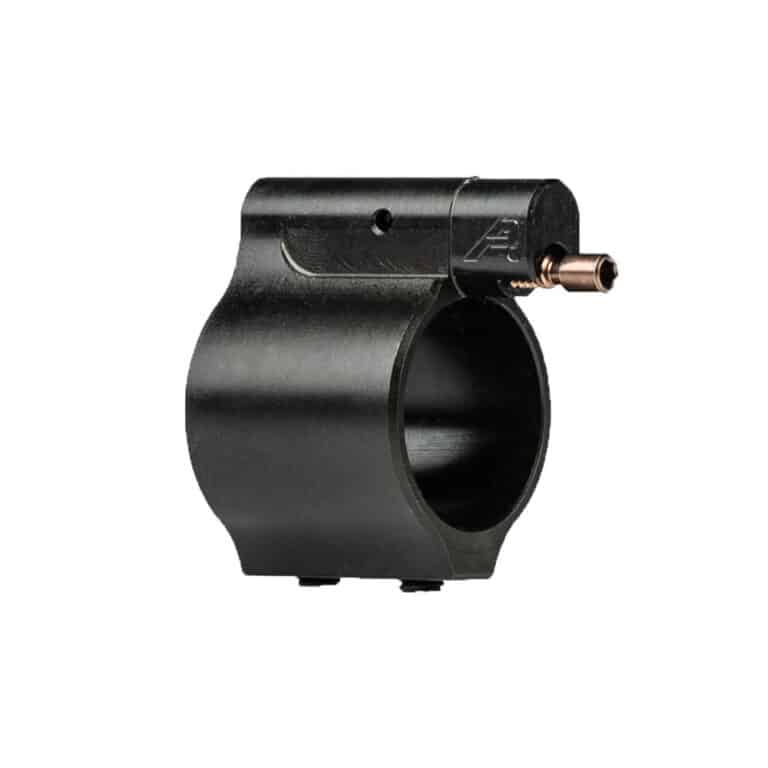

- Aero Precision Click Adjustable AR-15 Gas Block - Gas Block Size: .875" Adjustable Gas Block | SKU: APRH101615C

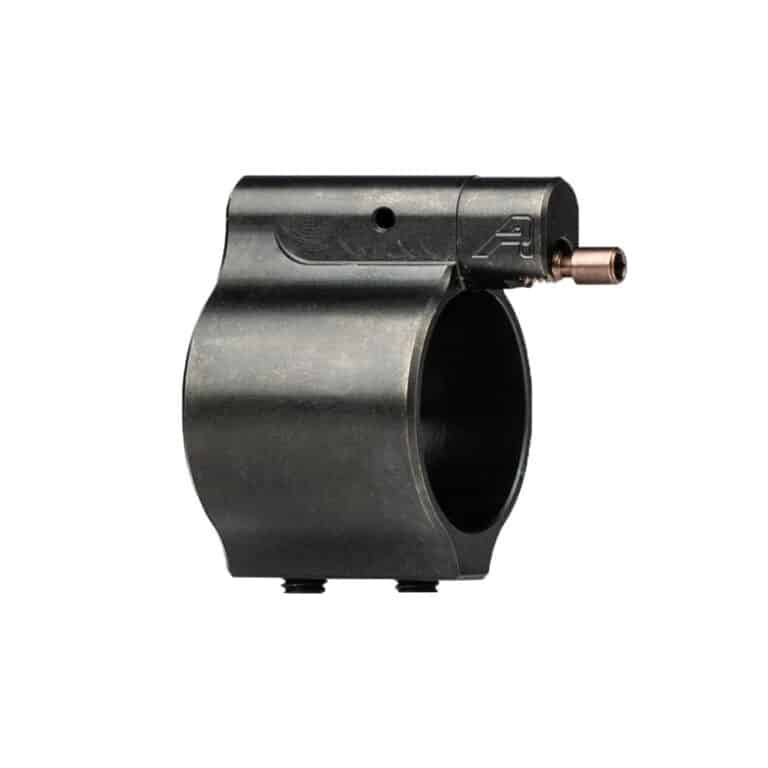

- Aero Precision Click Adjustable AR-15 Gas Block - Gas Block Size: .936" Adjustable Gas Block | SKU: APRH101616C
