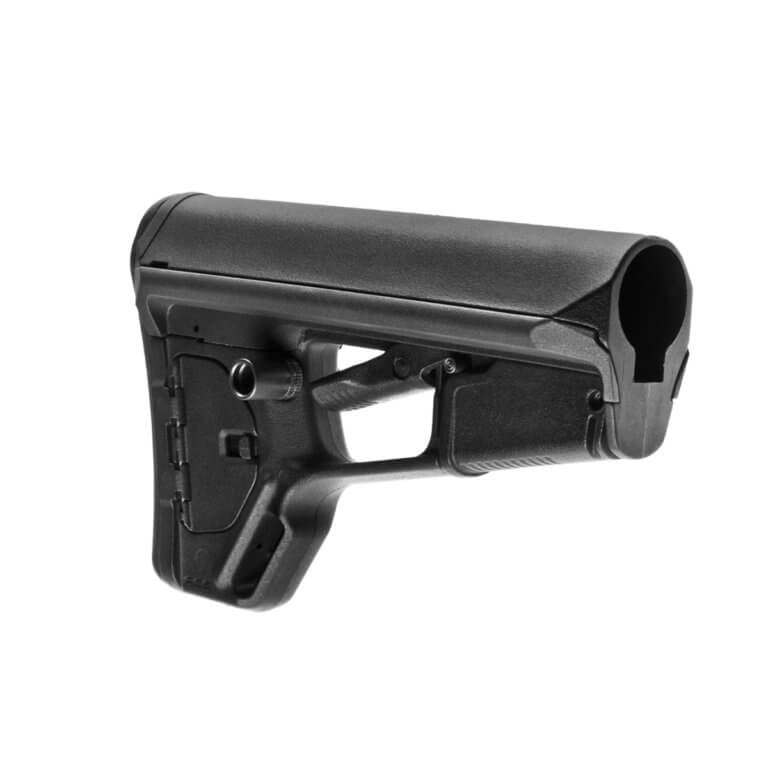

The Magpul ACS-L (Adaptable Carbine Stock - Light) is a drop-in replacement buttstock for AR15/M16 carbines using mil-spec sized receiver extension tubes. A streamlined version of the ACS, the ACS-L utilizes the same center storage compartment and cheek weld but removes the battery tubes for a slimmer, lighter weight package.
Made in U.S.A.
Mounts on mil-spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others (please see the note below)

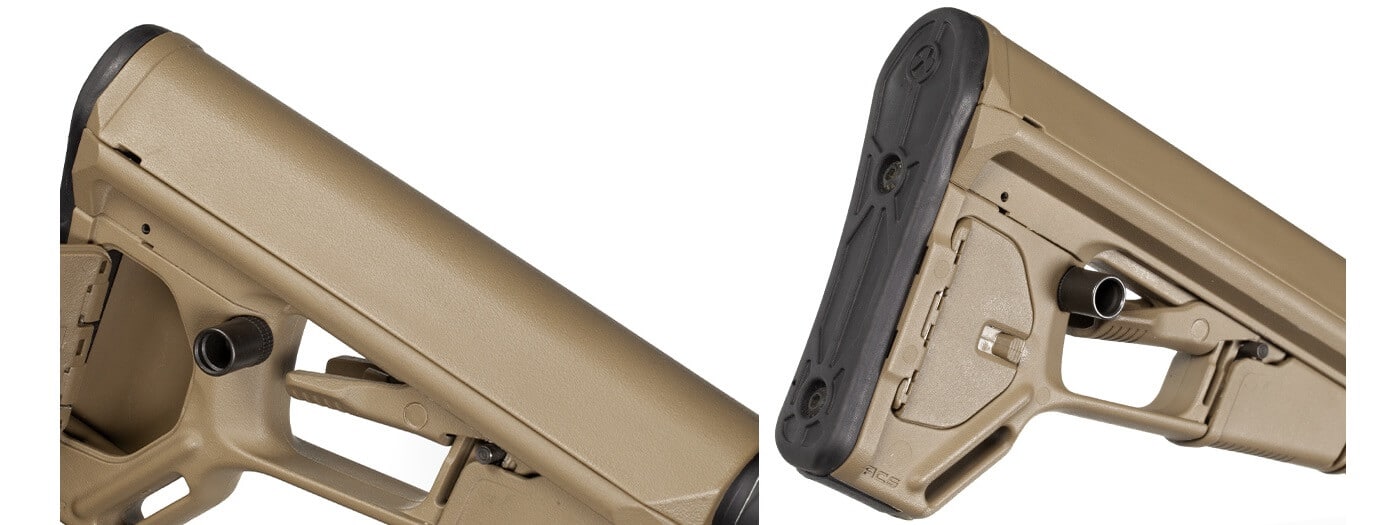

Sloping cheek weld provides a wide contact surface for user comfort

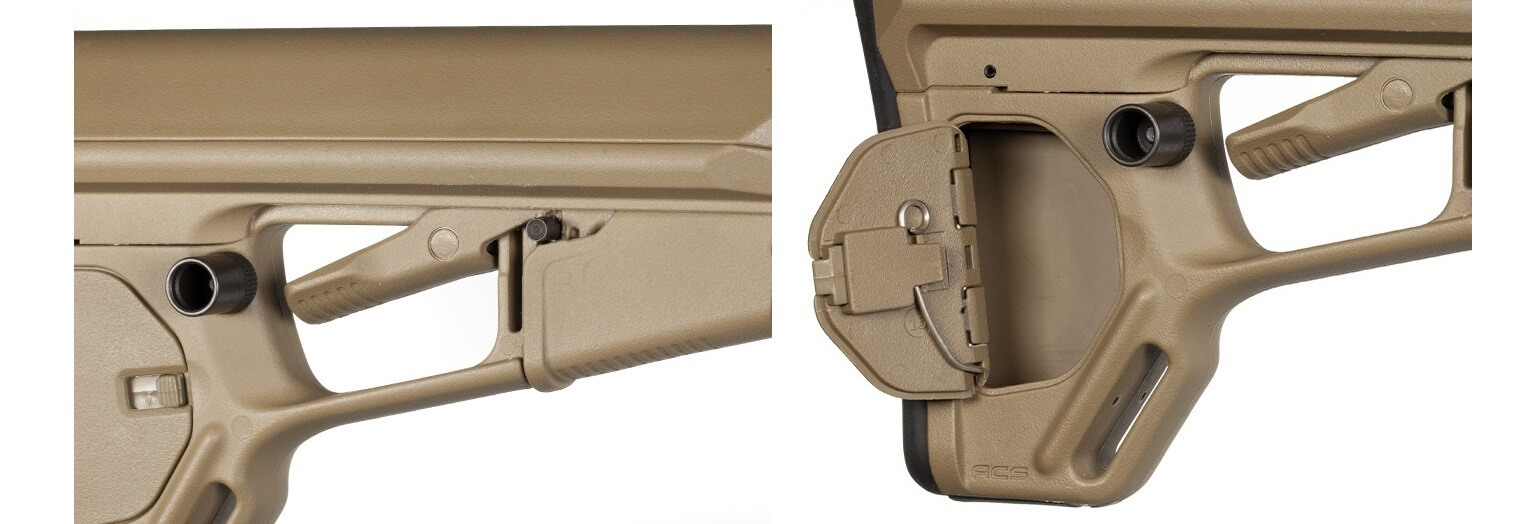

Storage compartment in tail of stock with positive latching access door on right hand side
Supplemental friction lock minimizes accuracy robbing wobble*
Shielded release latch prevents snagging and accidental operation
Premium chrome-silicon lock spring provides positive locking and long service life
Replaceable 0.30" Rubber Butt-Pad offers an anti-slip surface and increases impact protection
Compatible with Magpul ASAP® and other receiver-mount sling attachments
Mid – Included reversible QD Swivel Sling Mount fits up to 1.5" push-button swivels (swivel not included)
Rear/Bottom – 1.00" sling loop
Extended Rubber Butt-Pad, 0.55"
Enhanced Rubber Butt-Pad, 0.70"
ACS-L, Mil-Spec (stock configuration)
Weight: 0.78 lb.
Weight, w/ Rec. Extension: 1.02 lb.
Length, Maximum: 7.95 in.
Width, Maximum: 2.17 in.
LOP Adjustment Range: 3.25 in.
LOP, M4 Collapsed: 11.75 in.
LOP, M4 Extended: 15.00 in.
NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a commercial-spec extension on your rifle, make sure to order the Commercial-Spec ACS-L. Please see the "Related Info" section above to determine which tube you have.
* Friction lock performance may vary depending on the host receiver extension's dimensional tolerances.
** Specifications based on standard-length (flat-back) M4 Carbine Receiver Extension and may vary depending on tube manufacturer.
Standard Rubber Butt-Pad, 0.30" weight: 0.08 lb. Optional Extended Rubber Butt-Pad, 0.55" (weight: 0.11 lb.) or Enhanced Butt-Pad, 0.70" (weight: 0.13 lb.) may be used with either Mil-Spec or Commercial-Spec ACS-L stocks.
