AT3™ SPEAR XL AR-15 M-LOK Suppressor Ready Handguard – 12 & 15 Inch Lengths

Out of Stock

Enjoy 20% Off this product with AT3’s 12th Anniversale Sale!

Orders will Ship within 1 Business Day
Backed by the AT3 Lifetime Warranty!
TOP ADD-ON'S
Black

Magpul MBUS Gen 3 Front And Rear Back-Up Sight Kit

$94.90
AT3 Tactical Slick Side Upper with BCG and Breek Warhammer - Black - Nickel Boron

AT3™ Black Slick Side Upper with Nickel Boron BCG and Breek Warhammer Charging Handle

$213.59
AT3 Tactical Slick Side Upper with BCG and Breek Warhammer - Flat Dark Earth - Black Nitride

AT3™ FDE Slick Side Upper with Black Nitride BCG and Breek Warhammer Charging Handle

$182.39

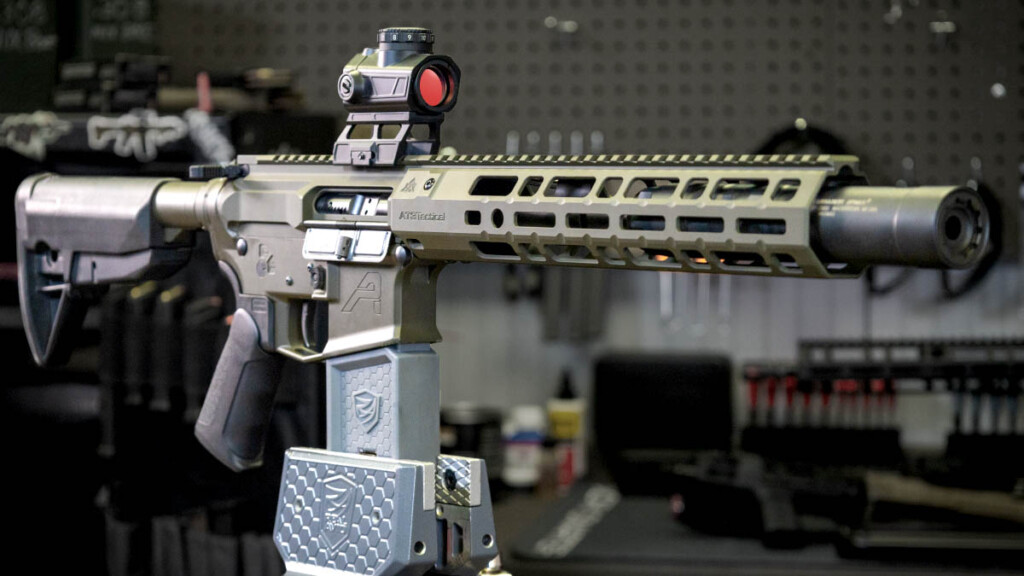

AT3 Tactical SPEAR XL with Forged Upper Combo - ODG SBR Build

The AT3™ SPEAR XL M-LOK Handguard is Suppressor Ready, Light Weight, and Easy to Install!

This suppressor-ready handguard free floats the barrel for accuracy, and maintains accuracy even with a suppressor underneath the handguard. Mount lights, grips, even laser modules where you need them with M-LOK attachment slots and a full length top rail. All without compromising your rail’s real estate while you’re running a silencer.

With 12” and 15” lengths available, the SPEAR XL handguard is ideal for customizing your next AR-15 build or upgrading an existing rifle with a buried suppressor. If you’re starting from a stock rifle, make sure you purchase a Low Profile Gas Block with the handguard.

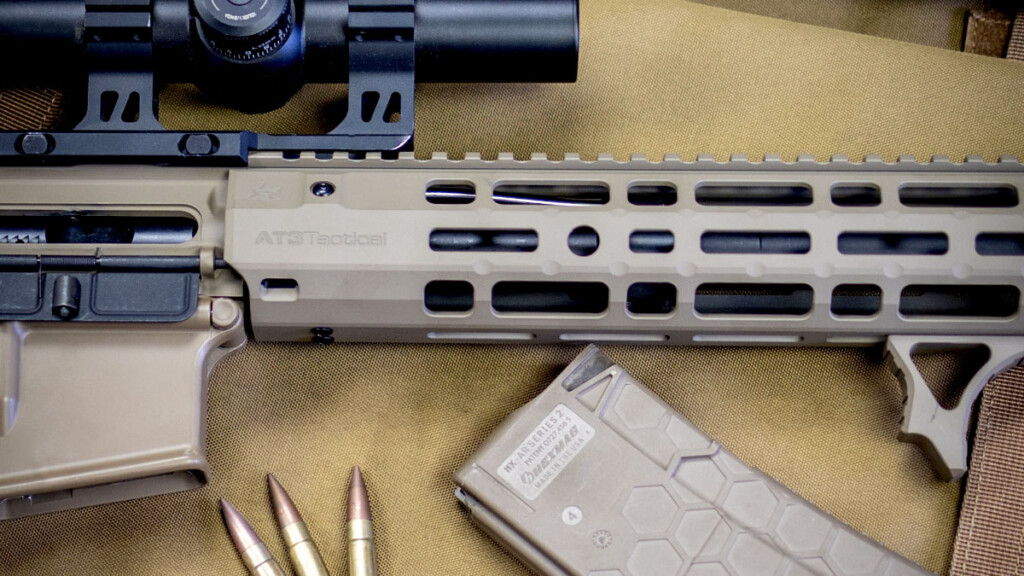

AT3 Tactical SPEAR XL with Forged Upper Combo - FDE Closeup

Lightweight & Suppressor Ready

  • Lightweight M-LOK design, with attachment, points at the 3, 6, & 9 o’clock positions and lightened Picatinny rail at the 12 o’clock position
  • Steel barrel nut with two-piece aluminum clamp ensures solid connection while reducing weight significantly
  • 1.74″ Internal Diameter accommodates most suppressors for 5.56, .300 Blackout, and More
  • Durable 6061 aircraft aluminum alloy construction – designed to take a beating
  • Picatinny top rail perfectly aligns with AR-15 flat-top upper receivers, both forged and our AT3 Billet Upper

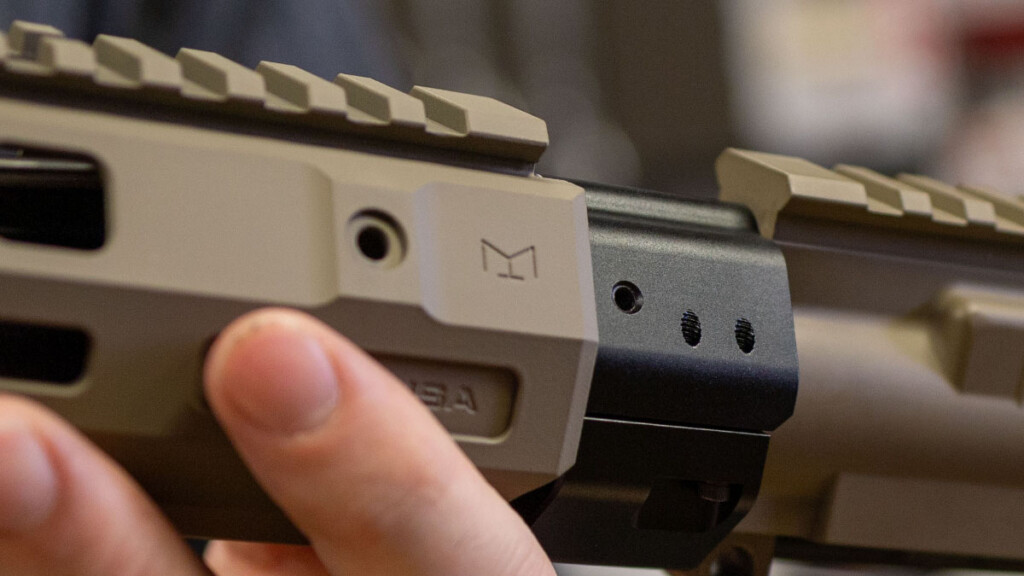

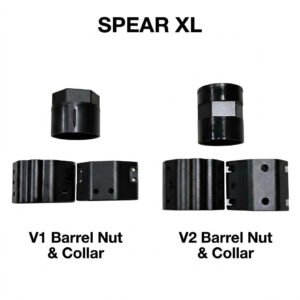

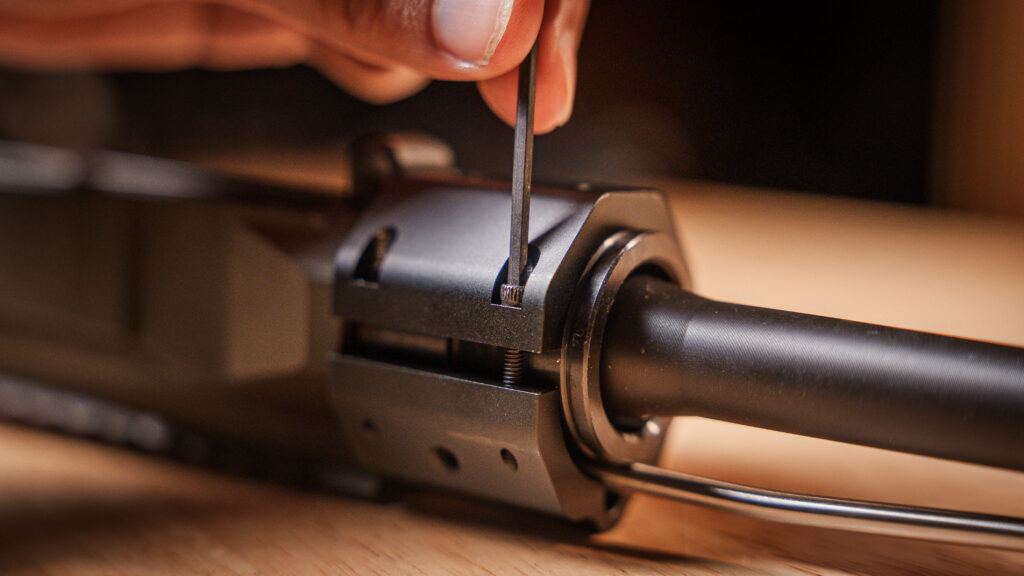

AT3 Tactical SPEAR XL Suppressor Ready Handguard - Barrel Nut and Collar Closeup

Dead Simple Installation

  • Installs clean and secure with only a few simple steps – all you’ll need is a torque wrench, vise block, and vise.
  • This unique design requires minimal timing – with a range of 30 to 80 ft/lbs of torque, it’s easy to align the gas tube.
  • Perfect for assembling a new build or upgrading an existing rifle – it’s compatible with most upper receivers on the market
  • Once you’ve got it installed, you’ll have plenty of room for M-LOK accessories and adapters

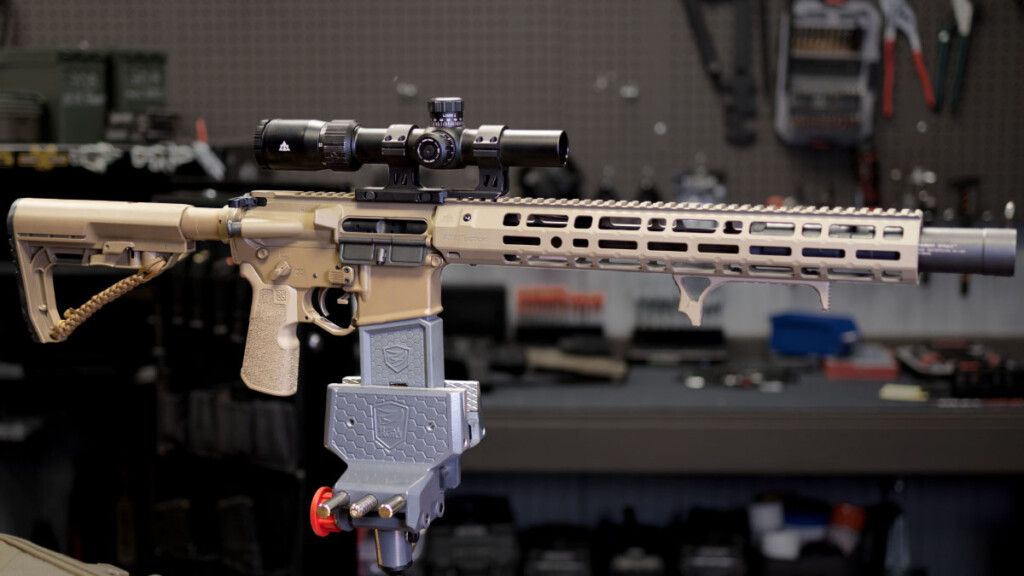

AT3 Tactical SPEAR XL with Forged Upper Combo - FDE with Optimus Suppressor

Exceptional Fit and Finish

  • Choose from black anodized or Cerakote™ finishes that resist scratches and provide an attractive surface that matches the rest of your build
  • Vented top rail reduces weight and dissipates heat from shooting
  • Finger grooves down the length of the handguard provide a more ergonomic hold and a unique look
  • Fully dehorned and free of burrs and other sharp snag points
  • Proudly made in the USA
  • Backed by the AT3 Lifetime Warranty

More Information

Full kit – includes all mounting hardware, plus one M-LOK 5-Slot Rail section and barrel nut wrench.

Note: most rifle setups will require the use of a low profile gas block that sits under the handguard.

Included in the Box

Handguard with steel barrel nut, aluminum barrel nut collar and all mounting hardware, one 5-slot M-LOK to-Picatinny rail, hex wrenches for handguard and rail sections, and barrel nut wrench.

Specifications

  • Rifle Type: AR-15 (If you have a .308 AR variant, check out our AR-10 / .308 page)
  • Handguard Material: 6061-T6 Aluminum
  • Finish
    • Black: Type 3 Hardcoat Anodized
    • Flat Dark Earth: H-267 Cerakote Magpul® Flat Dark Earth
    • OD Green: H-232 Cerakote Magpul® OD Green
    • Pink: H-224 SIG™ Pink
    • Burnt Bronze: H-148 Burnt Bronze
    • Tungsten: H-237 Tungsten
    • Titanium: H-170 Titanium
    • Red: H-167 USMC Red
  • Handguard inside diameter: 1.74”
  • Handguard outside diameter: 1.93″
  • Barrel Nut Material: Steel
  • Included Rail Sections: One Aluminum Picatinny Rail Section – 1 3/4” Length, 5 slots
  • Weight
    • 12″ Handguard – 12.5oz
    • 15″ Handguard – 14oz

Frequently Asked Questions

Will this fit my AR-15?

The SPEAR XL is designed for use with Forged Upper Receivers, our matching Billet Upper Receiver, and many other designs on the market. In most instances, it will also require the use of a low-profile gas block that fits underneath the rail. Piston systems may also be used, but check with the manufacturer first for exact dimensions.

This product will not work with non-milspec upper receivers like the Bushmaster Carbon due to the non-standard barrel threads.

We’re always glad to verify the fit for your rifle, just contact us! And if it doesn’t fit, we are glad to return it for you. And if you’re new to AR-15, we recommend watching a couple of the videos on our installation video page to understand how the process works.

Will this fit my Suppressor?

The SPEAR XL has a 1.74″ inside diameter, which will accommodate most suppressors for the AR-15. Typically, we recommend a 1.5″ diameter suppressor for use with this handguard, to ensure that the M-LOK slots are still able to be used surrounding the suppressor. Larger suppressors may have trouble fitting M-LOK accessories.

What tools and additional parts are required?

For parts – most setups will require a low-profile gas block.

For tools – we recommend:

  • A vise and non-marring vise block for holding the upper
  • A torque wrench to assure you stay in the AR-15 barrel nut torque range while timing the barrel nut (30-60 ft lbs)

NOTE: Due to the circular shape of the SPEAR XL handguard, the Magpul Gen 2 MBUS Iron Sights are not able to be activated. However, the Magpul Gen 3 MBUS and other iron sights will fit onto the SPEAR XL with no issue.

Products available on this page:

The AT3 Tactical store has a 90 day no-hassle return policy for products in good condition. You can view the full details of our return policy here.

If you encounter an issue or defect with a product after 90 days of your purchase, you can refer to the manufacturer for a warranty claim. Their policies are below.

AT3 Lifetime Warranty Logo

All AT3 Tactical Brand Products carry a lifetime warranty against manufacturer’s defects.

This includes AT3 Red Dot SightsHandguardsIron Sights, and any other product that carries the “AT3 Tactical” or “AT3™” name. For other brands (ex. Magpul or Troy), please refer to the manufacturer’s warranty policy.

In the event that your AT3™ product becomes unusable, we will repair or replace the product at no charge to you.

If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition. The warranty is fully transferable, but we may require information about the original purchase to validate the authenticity of the product.

If your product is in need of warranty service, please contact AT3 Tactical to start the process

Our contact info is available here. To expedite processing, please provide your order information and description of the defect.

Please note: The AT3 Lifetime Warranty does not cover loss, theft, intentional damage or cosmetic damage that doesn’t affect the performance of the product.

Customer Reviews

Based on 14 reviews
79%
(11)
7%
(1)
7%
(1)
7%
(1)
0%
(0)

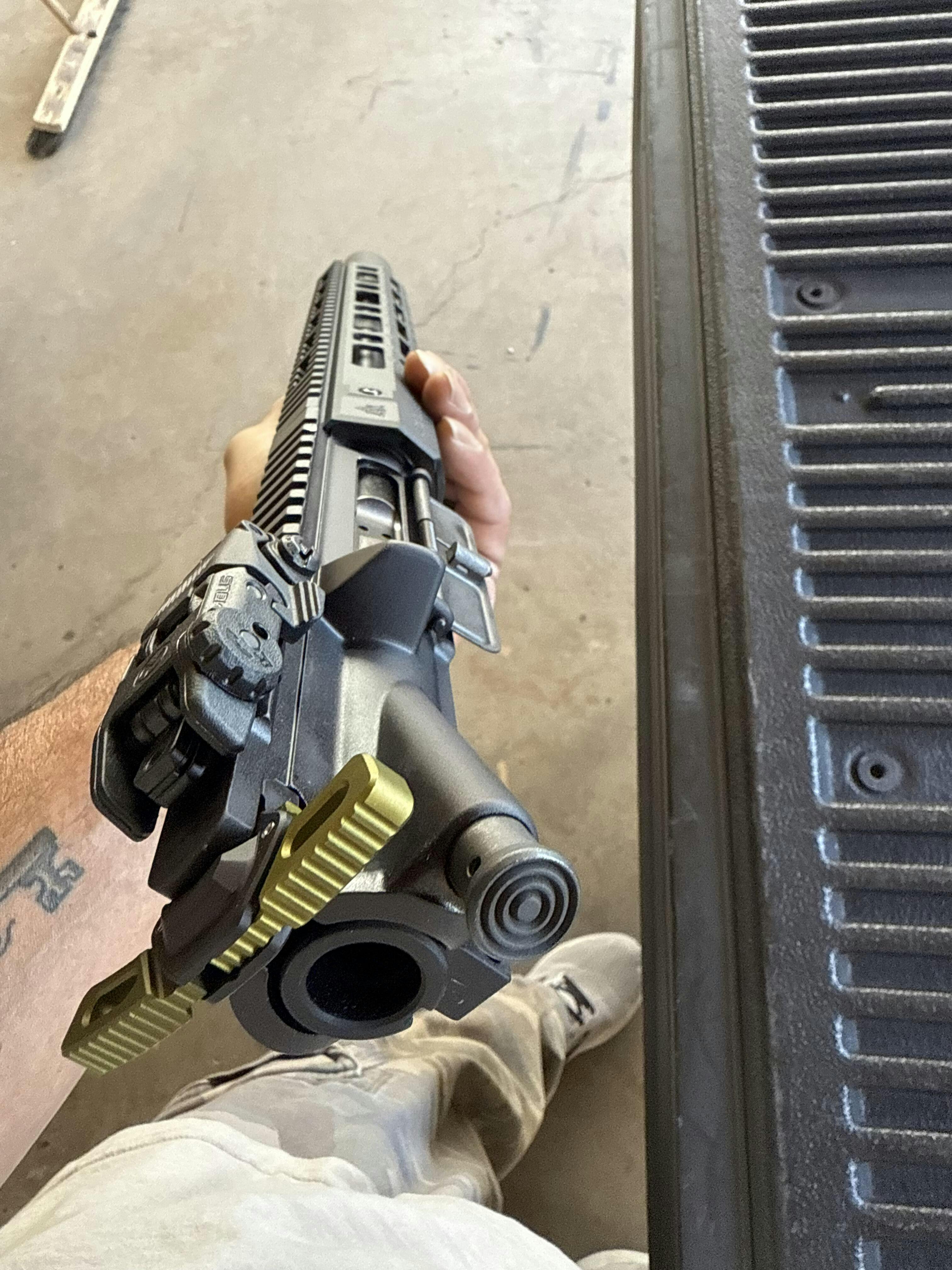

M
Mike M

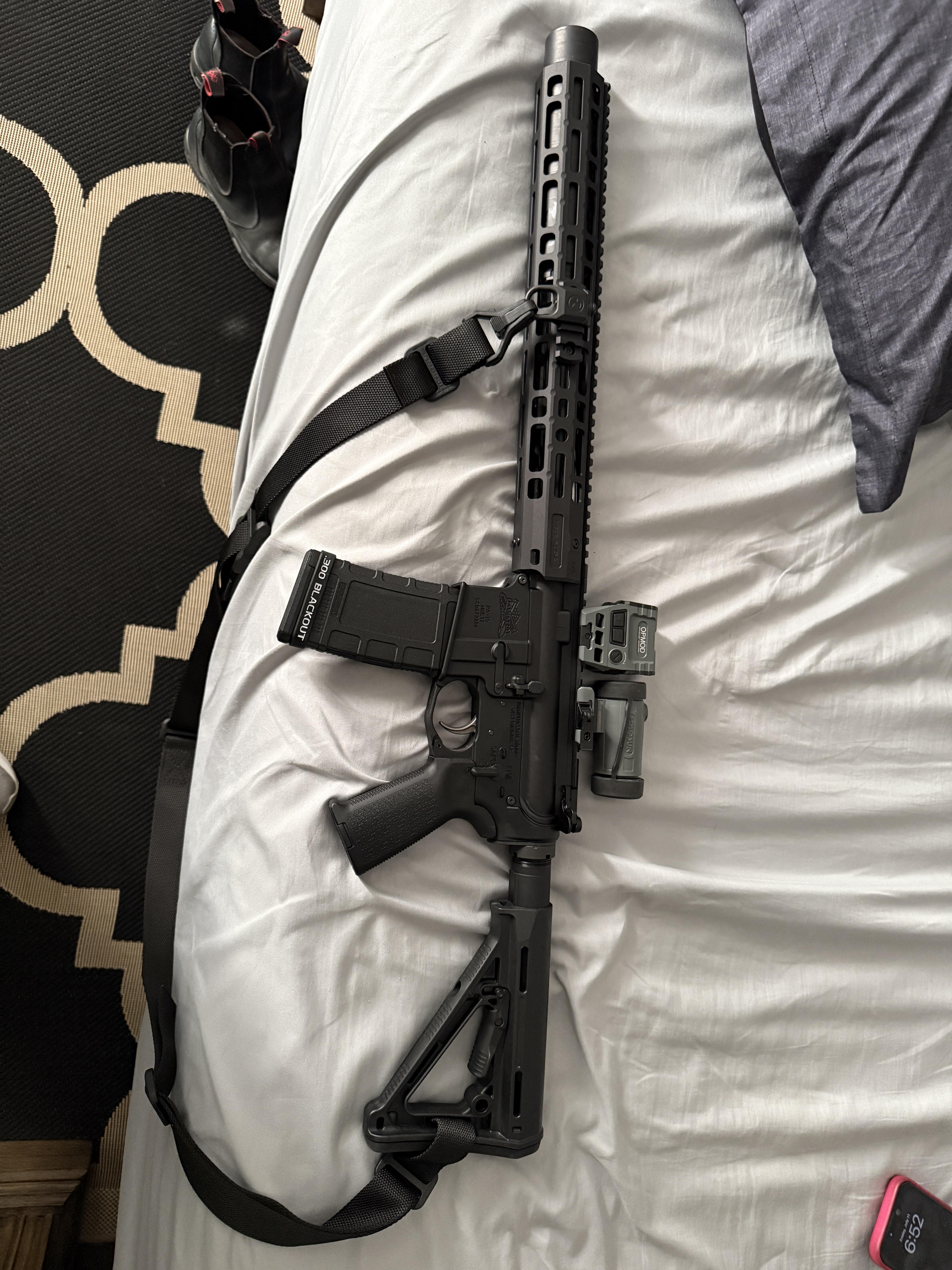

OCL Polonium fits under like a glove

This hand guard is fire. Put a 12” ODG on a 7.5” build with an Otter Creek Labs Polonium and the look is exactly what I was shooting for (pun intended). Thanks AT3 for making this hand guard. Amazing product and customer service.

Thank you for your glowing review! We're thrilled to hear that our AT3™ SPEAR XL handguard was the perfect fit for your build and that you were able to achieve your desired look. Our team at AT3 is always happy to provide top-notch products and customer service. Happy shooting!

J
Juan M
Exceeded expectations

Handguard is very well built. Exceeded all my expectations paired it with a at3slick upper to build a tucked 338 arc build really happy with the results

S
Santos Munoz
Great buy

It went on like a champ and it makes my ar pistol look tough !!!

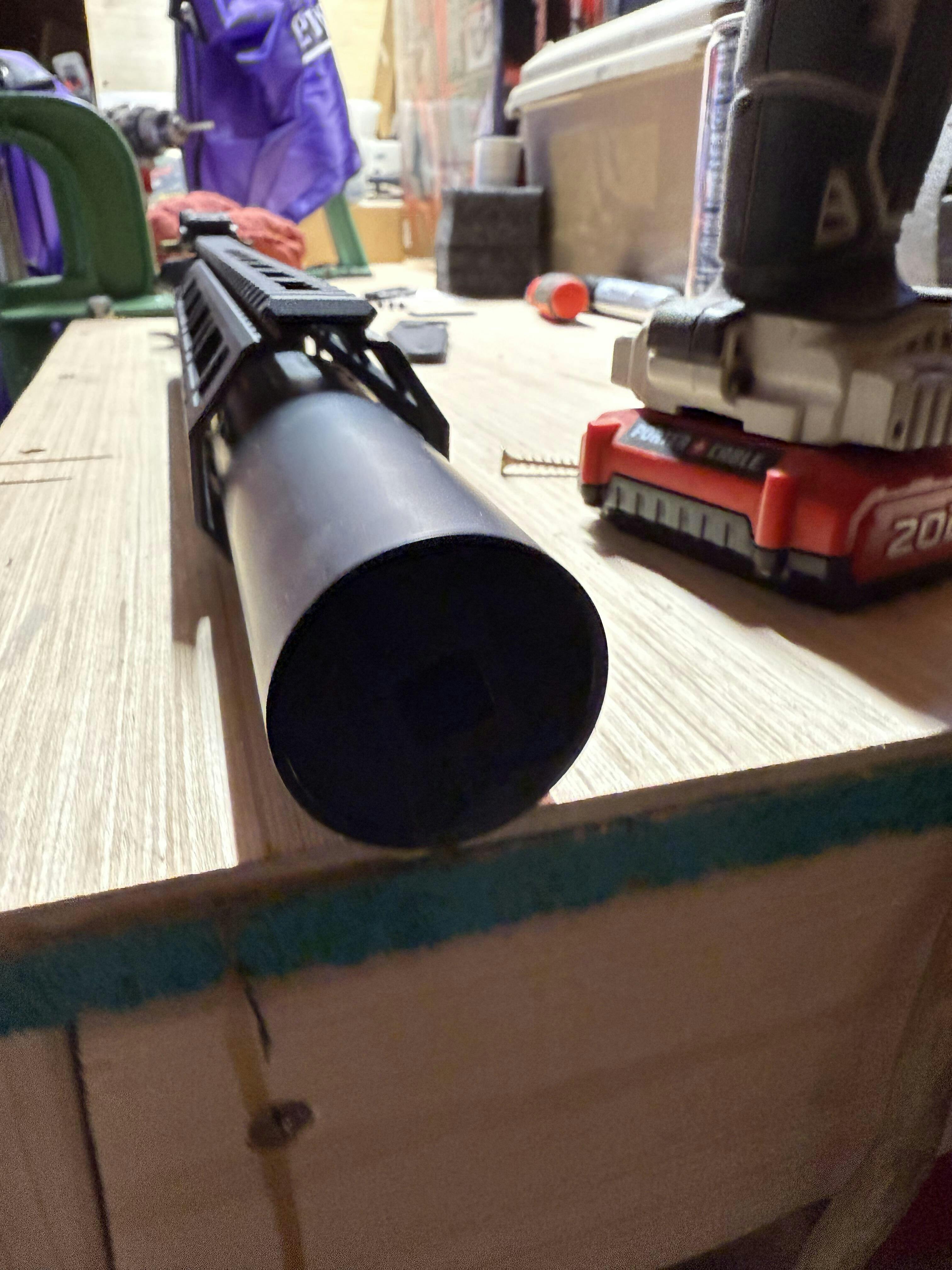

A
Allen Trevino
Quality supressor ready handguard

I purchased rhe 12 inch version of the Spear XL for my 12.5 inch 300 Blackout barrel and for the price I wasn't expecting too much other than a decent M-Lok handguard. To my suprise the finish, fit and feel were exceptional and it feels great in my rather large hands. I was a bit disappointed when I couldn't use my MBUS gen2 front sight with this handguard but I won't knock the handguard for me not scrolling all the way down the page to find the disclaimer about that particular front sight. Now I just have to save up for and find a good deal on some BCM sights or go cheap in the meantime with some UTG Pro sights. Other than the need to time the barrel nut this was a no brainer installation and the lockup to the upper is tight with the anti-rotation tabs. When I need another handguard this is the one I'll be looking for on another build, maybe the 15 inch for a 16 inch barrel.

Thank you for your kind review of our AT3™ SPEAR XL Suppressor Ready AR-15 M-LOK Handguard! We are happy to hear that you are pleased with the quality and fit of the handguard. We apologize for any inconvenience with the front sight compatibility, but we appreciate your understanding. We hope you enjoy using the handguard and we look forward to serving you again in the future!

T
Trevor Rollins
Excellent quality

Installed on my 300Blk dedicated suppressed its large and feels better on the hands when operating.
wish they had more size options for example 9.5”, 7” options maybe an idea?

Thank you for your feedback! We are so glad to hear that you are satisfied with the quality of our AT3™ SPEAR XL handguard. We will definitely take your suggestion into consideration and look into offering more size options in the future. Thank you for choosing AT3 Tactical!

Customers who viewed this item also viewed these products

AT3 Spear M-LOK Handguard with Cerakote Finishes - 7 Colors

AT3™ SPEAR M-LOK Handguard for AR-15 – 9, 12, &...

$99.99$79.99
The AT3 SPEAR™ is our best, most secure handguard. Simple to install, lightweight, and
MI SP (Suppressor Compatible) AR-15 Free Float Handguard - M-LOK

Midwest Industries SP Suppressor Ready AR-15 Handguard Free Float M-LOK

Midwest Industries Suppressor Compatible Handguard The Midwest Industries SP Series M-Lok Handguard is made
AT3™ Forged Upper Receiver and SPEAR XL Suppressor Ready Handguard Combo

AT3™ Forged Upper Receiver and SPEAR XL Suppressor Ready Handguard...

$219.99$175.99
AT3 SPEAR XL M-LOK Suppressor Ready Handguard with Forged Upper This suppressor-ready AR-15 handguard
AT3™ Slick Side Upper Receiver and SPEAR XL Suppressor Ready Handguard Combo

AT3™ Slick Side Upper Receiver and SPEAR XL Suppressor Ready...

(no reviews yet)
$229.99$183.99
AT3 SPEAR XL M-LOK Suppressor Ready Handguard with Slick Side Upper This suppressor-ready handguard

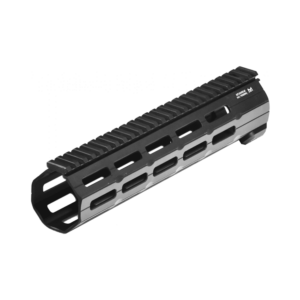

UTG PRO Suppressor Ready SD Free-Float AR15 Handguard
