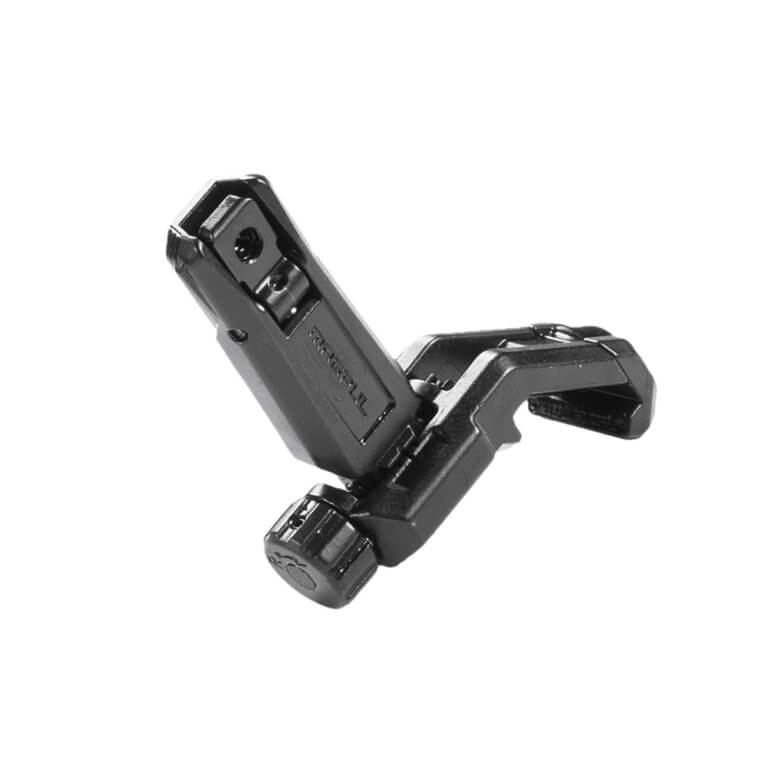

Magpul MBUS PRO AR-15 Offset Rear Sight – MAG526

Name: Magpul MBUS PRO AR-15 Offset Rear Sight - MAG526
SKU: MAG526
Availability: OutOfStock
Rating: 4.0 (2 reviews)

Based on 2 reviews

SKU: MAG526 | UPC: 873750000336

Join the waitlist to be emailed when this product becomes available

Enter your email address to join the waitlist for this product

Keep me up to date on news and exclusive offers

Orders will Ship within 1 Business Day

Backed by Magpul Warranty!

TOP ADD-ON'S

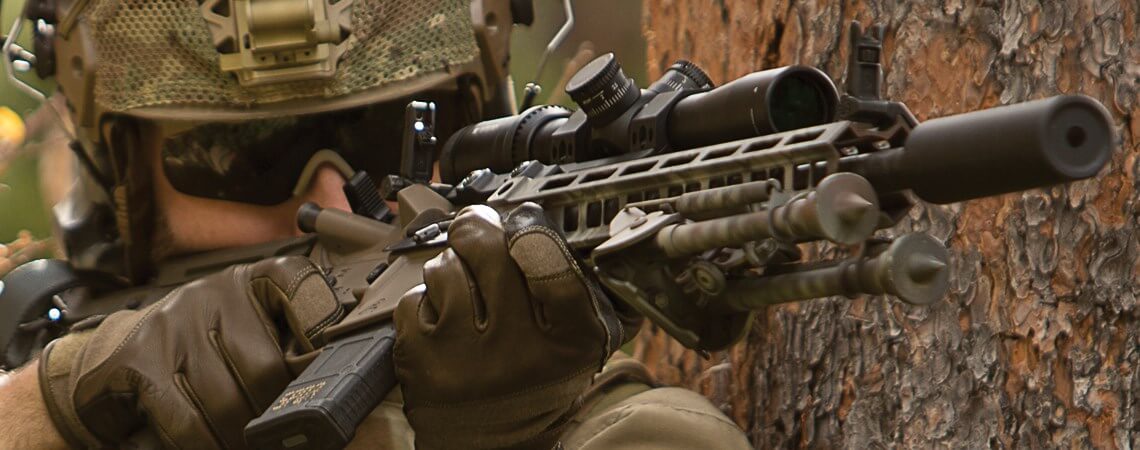

Magpul MBUS PRO Offset Front Sight – MAG525

$104.45

Birchwood Casey Shoot-N-C Target - Round Bullseye - 12" - 5 Targets

$9.99

Effective Aiming System To Supplement Magnified Optics

The Magpul MBUS PRO Offset Rear Sight was designed as an outstanding front-sighting solution for your AR-15. It provides maximum functionality in the event that the primary optics become damaged or nonfunctional. This rear back-up sight will keep your AR fully equipped during emergencies and unexpected situations.

The Magpul MBUS PRO Offset Rear Sight was designed to be part of an effective aiming system that will supplement magnified optics on M1913 Picatinny mounting surfaces bringing more strength and reliability on your AR-15 platform.

Fully-Featured Iron Sighting

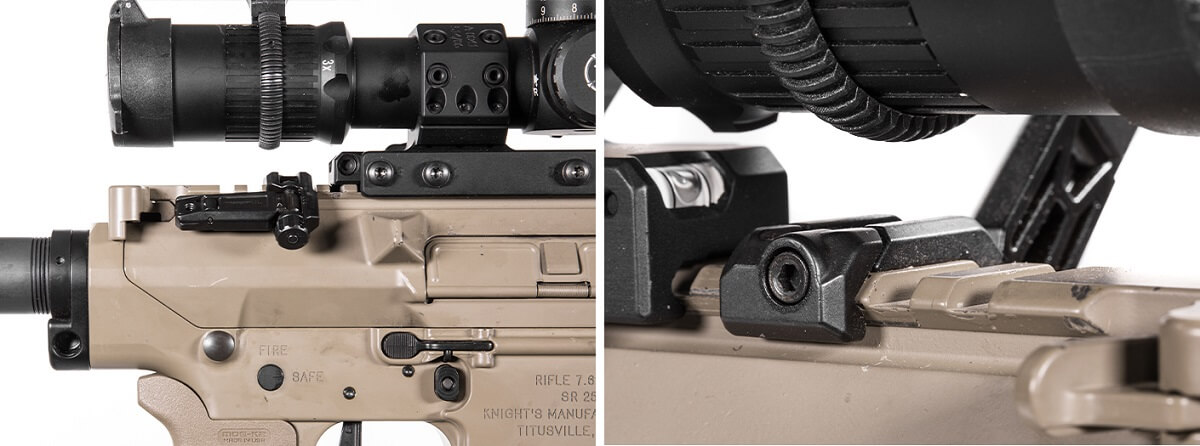

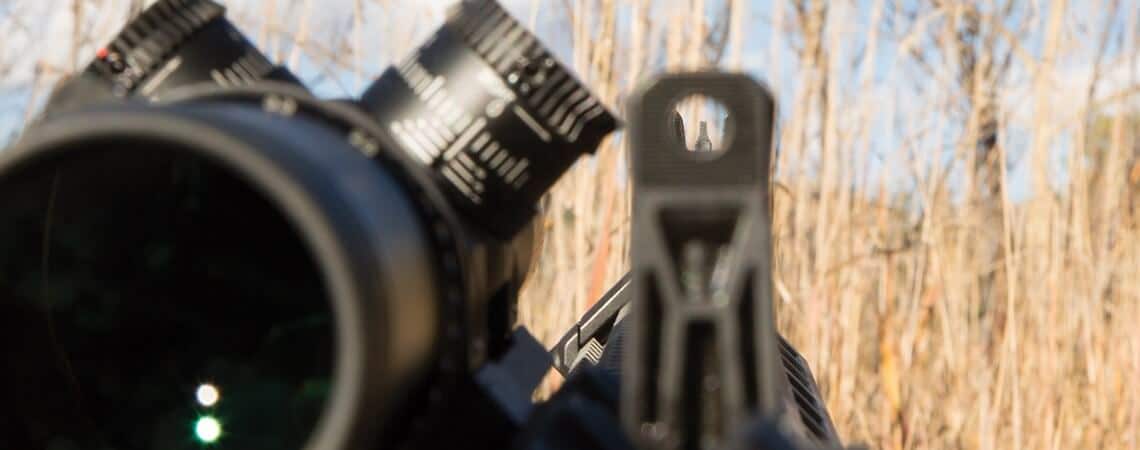

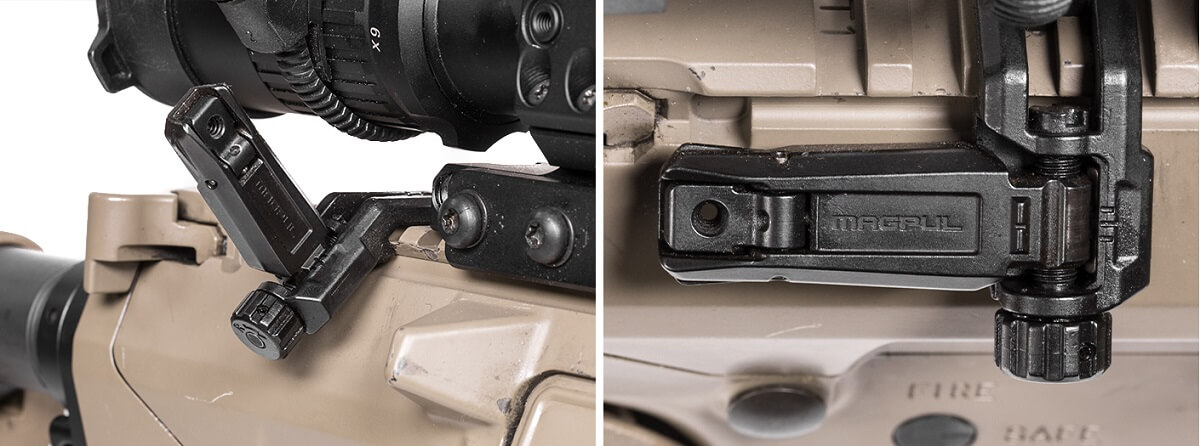

The Magpul MBUS PRO Offset Rear Sight provides the shooter with a fully-featured iron sighting with no hassle. It serves as an immediate back-up sight by rotating the rifle at about 45 degrees with no detachment or installation needed from your other accessories.

It features durable Melonited steel construction, positive detented lockup when deployed, tool-less windage adjustment for easy zeroing, dual rear apertures, and a low profile footprint to ensure compatibility and reduce interference with most rifle setups.

Features:

All steel construction
Case hardened and finished with Melonite QPQ™ for extreme resistance to wear and corrosion
Mounts on any MIL-STD-1913 Picatinny/STANAG 4694 rail
Windage adjustable with low-profile knob – no tools required
Positive detents in both the up and down positions
Standard AR height over bore when deployed, 45 deg. offset right-hand side
Supplements magnified optics on M1913 Picatinny mounting surfaces
Dual rear apertures
Low profile footprint

Specifications:

Position: Rear
Weight, w/ hardware: 2.0 oz.
Height above rail at clamp: ~0.18″
Length stowed: 2.0″
Small aperture dia.: 0.07″
Large aperture dia.: 0.19″

Windage Adjustment:

~0.5 MOA (0.566″/100m) per click with a 14.5″ sight radius
~0.4 MOA (0.410″/100m) per click with a 20″ sight radius

NOTES:

Only compatible with MBUS Pro OFFSET Front sight MAG525.
Made in the U.S.A.
